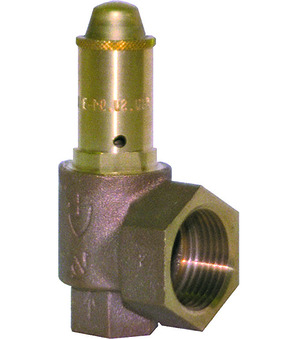

Safety valve, full stroke SF01-12-15.8-8-3C0
Safety valve, full stroke Series SF01; With twist lifting; Body Bronze; Seal NBR; Application: Compressed air, Non-toxic gases, vapors; Medium temperature -30...130°C; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness; Inlet Male thread G 1/2"; Outlet Female thread G 1/2"; DN 15,8mm; Set pressure 8bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.438 Kg
Short Itemnumber: SF011215.883C0
Country of origin: Germany
Weight: 0.438 Kg
Short Itemnumber: SF011215.883C0
safety valve, full stroke series SF01; with twist lifting; body bronze; seal NBR; application: compressed air, non-toxic gases, vapors; medium temperature -30...130°C; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; inlet male thread G 1/2"; outlet female thread G 1/2"; DN 15,8mm; set pressure 8bar
| dimension | |
|---|---|
| DN | 15,8 mm |
| Inlet G | 1/2" |
| Outlet | G 1" |
| characteristics | |
| Set pressure | 8 bar |
No spare parts are available for this product.
