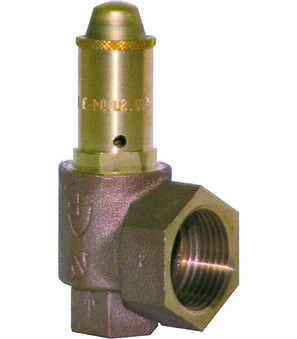

Safety valve, full stroke Series SF01; With twist lifting; Body Bronze; Seal NBR; Application: Compressed air, Non-toxic gases, vapors; Medium temperature -30…+130°C; Possible set pressures 0,5...25bar In steps of 0,1 bar; Inlet G 11/4"; Outlet G 2"; DN 30mm; Discharge capacity at 6bar(g) air 2088Nm3/h
Country of origin: Germany
Weight: 2.42 Kg
Short Itemnumber: SF01114W30X
safety valve, full stroke series SF01; with twist lifting; body bronze; seal NBR; application: compressed air, non-toxic gases, vapors; medium temperature -30…+130°C; possible set pressures 0,5...25bar in steps of 0,1 bar; inlet G 11/4"; outlet G 2"; DN 30mm; discharge capacity at 6bar(g) air 2088Nm3/h
Technical specifications
| DN | 30 mm |
|---|---|
| Blow-off capacity at 6 bar air | 2088 Nm3/h |
| Female thread | G 1 1/4" |
| Female thread 2 | G 2" |
| DN | 30 mm |
| Blow-off capacity at 6 bar air | 2088 Nm3/h |
| Female thread | G 1 1/4" |
| Female thread 2 | G 2" |
| Brand | STASTO |
SF01-114W-30-X
