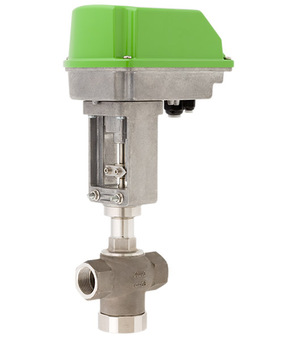

Electrical seat valve Series SEC14-CA24C; Distribution function; 3-way-type; Body Stainless steel AISI 316; Seal PTFE; Female thread; Medium temperature -30...+200°C; Control actuator CA24C 24VAC/DC; Control signal 4-20mA; Position feedback 4-20mA; 2 Limit switch; Characteristic linear; With control cone; G 11/4"; DN 32; Operating pressure 0...4,8bar; Kvs-value 15/18 (100%)
Country of origin: Germany
Weight: 4.1 Kg
Short Itemnumber: SEC14114STEC7
electrical seat valve series SEC14-CA24C; distribution function; 3-way-type; body stainless steel AISI 316; seal PTFE; female thread; medium temperature -30...+200°C; control actuator CA24C 24VAC/DC; control signal 4-20mA; position feedback 4-20mA; 2 limit switch; characteristic linear; with control cone; G 11/4"; DN 32; operating pressure 0...4,8bar; kvs-value 15/18 (100%)
Technical specifications
| Female thread | G 1 1/4" |
|---|---|
| DN | 32 mm |
| Operating pressure | 0...4,8 bar |
| Kvs-value | 15/18 (100%) |
| Female thread | G 1 1/4" |
| DN | 32 mm |
| Operating pressure | 0...4,8 bar |
| Kvs-value | 15/18 (100%) |
SEC14-114-STEC7
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Elektrisches Sitzventil Serie SEC14-CA24C · DE
Data sheet 3,0 MB Updated 13/06/2026
CAD / 3D
1-
STP
CADSTEP · SEC14114STEC7
CAD-STEP 13,1 MB Updated 27/09/2026
English
Data Sheets
1-
PDF
Data sheet · Electrical seat valve Series SEC14-CA24C · EN
Data sheet 3,0 MB Updated 13/06/2026
CAD / 3D
1-
STP
CADSTEP · SEC14114STEC7
CAD-STEP 13,1 MB Updated 27/09/2026
