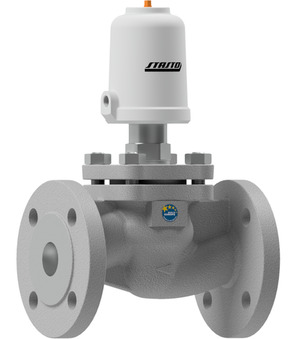

Pneumatically operated seat valve SE25-40-ST51

Pneumatically operated seat valve SE25-40-ST51

Pneumatically operated seat valve Series SE25-ST; ATEX II 2G Ex h IIC T6…T2 X Gb / II 2D Ex h IIIC 85°C…220°C X Db; NC; Body Stainless steel AISI 316; Seal PTFE; Flange PN40; For gaseous media; Closing with flow; Medium temperature -30...+170°C; DN 40mm; Operating pressure 0…6bar; Control pressure 5…10bar; Diameter Actuator 50mm

Intrastat No.: 84818079
Country of origin: Germany
Weight: 0.61 Kg
Short Itemnumber: SE2540ST51
https://www.stasto.pl/web/image/product.template/116803/image_1920?unique=1c051dc

pneumatically operated seat valve series SE25-ST; ATEX II 2G Ex h IIC T6…T2 X Gb / II 2D Ex h IIIC 85°C…220°C X Db; NC; body stainless steel AISI 316; seal PTFE; flange PN40; for gaseous media; closing with flow; medium temperature -30...+170°C; DN 40mm; operating pressure 0…6bar; control pressure 5…10bar; diameter actuator 50mm

5.093,00 zł 5093.0 PLN 5.093,00 zł

cena na zapytanie

  • DN
  • Cable length
  • Flange
  • Diameter Actuator
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Operating pressure
  • Control pressure
  • Coil
  • Actuator
  • Approval

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 40 mm
Flange PN40
Diameter Actuator 50 mm
design
Design ATEX
pressure
Operating pressure 0...6 bar
Control pressure 5...10 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Pneumatically operated seat valve Series SE25-ST_EN.pdf
Download
CAD / 3D
1
CADSTEP_SE2540ST51.stp
Download
