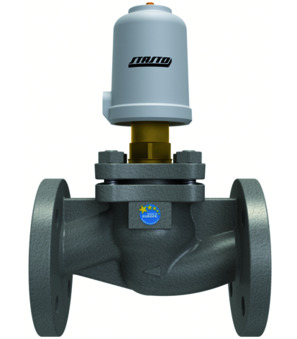

Pneumatically operated seat valve 65-0-10-5-10-125
pneumatically operated seat valve series SE08-GE; NO; body cast iron EN-GJL-250; seal EPDM; flange PN16; for gaseous media and liquids; medium temperature -10...+140°C; DN 65mm; operating pressure 0-10bar; control pressure 5-10bar; diameter actuator 125mm
Weight: 8.9 Kg
Short Itemnumber: SE0865GE1251
pneumatically operated seat valve series SE08-GE; NO; body cast iron EN-GJL-250; seal EPDM; flange PN16; for gaseous media and liquids; medium temperature -10...+140°C; DN 65mm; operating pressure 0-10bar; control pressure 5-10bar; diameter actuator 125mm
This product is no longer available.
| dimension | |
|---|---|
| DN | 65 mm |
| Diameter Actuator | 125 mm |
| pressure | |
| Operating pressure | 0...10 bar |
| Control pressure | 5...10 bar |
| characteristics | |
| Medium temperature | -10...+140 °C |
No spare parts are available for this product.
