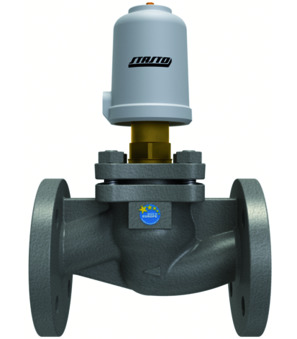

Pneumatically operated seat valve 15-0-10-3,5-10-50
Pneumatically operated seat valve Series SE07-GE; NC; Body Cast iron EN-GJL-250; Seal EPDM; Flange PN16; For liquids; Closing against flow; Medium temperature -10...+140°C; DN 15mm; Operating pressure 0-10bar; Control pressure 3,5-10bar; Diameter Actuator 50mm
Weight: 0.07 Kg
Short Itemnumber: SE0715GE51
pneumatically operated seat valve series SE07-GE; NC; body cast iron EN-GJL-250; seal EPDM; flange PN16; for liquids; closing against flow; medium temperature -10...+140°C; DN 15mm; operating pressure 0-10bar; control pressure 3,5-10bar; diameter actuator 50mm
This product is no longer available.
| dimension | |
|---|---|
| DN | 15 mm |
| Diameter Actuator | 50 mm |
| pressure | |
| Operating pressure | 0...10 bar |
| Control pressure | 3,5...10 bar |
| characteristics | |
| Medium temperature | -10...+140 °C |
No spare parts are available for this product.
