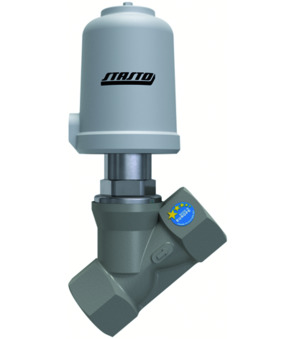

Pneumatically operated seat valve SE03-14-ST51

Pneumatically operated seat valve SE03-14-ST51

Pneumatically operated seat valve Series SE03-ST; NO; Body Stainless steel 1.4408; Seal PTFE; Female thread; For gaseous media and liquids; Medium temperature -30...+170°C; G 1/4"; DN 8mm; Operating pressure 0-40bar; Control pressure 5-10bar; Diameter Actuator 50mm

Intrastat No.: 84818079
Country of origin: Germany
Weight: 1.0 Kg
Short Itemnumber: SE0314ST51
https://www.stasto.pl/web/image/product.template/104786/image_1920?unique=3190a4b

pneumatically operated seat valve series SE03-ST; NO; body stainless steel AISI 316; seal PTFE; female thread; for gaseous media and liquids; medium temperature -30...+170°C; G 1/4"; DN 8mm; operating pressure 0-40bar; control pressure 5-10bar; diameter actuator 50mm

2.165,70 zł 2165.7 PLN 2.165,70 zł

cena na zapytanie

  • Female thread
  • DN
  • Cable length
  • Diameter Actuator
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Operating pressure
  • Control pressure
  • Coil
  • Actuator
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 1/4"
DN 8 mm
Diameter Actuator 50 mm
pressure
Operating pressure 0...40 bar
Control pressure 5...10 bar
characteristics
Medium temperature -30...+170 °C
