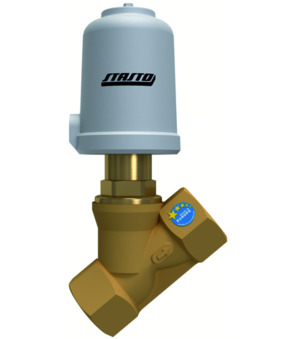

Pneumatically operated seat valve SE02-N112-RT81
Pneumatically operated seat valve Series SE02-RT; NC; Body Bronze; Seal PTFE; Female thread; For liquids; Closing against flow; Medium temperature -30...+170°C; 11/2"NPT; DN 40mm; Operating pressure 0-7bar; Control pressure 3,5-10bar; Diameter Actuator 80mm
Intrastat No.: 84818079
Country of origin: Germany
Weight: 3.65 Kg
Short Itemnumber: SE02N112RT81
Country of origin: Germany
Weight: 3.65 Kg
Short Itemnumber: SE02N112RT81
pneumatically operated seat valve series SE02-RT; NC; body bronze; seal PTFE; female thread; for liquids; closing against flow; medium temperature -30...+170°C; 11/2"NPT; DN 40mm; operating pressure 0-7bar; control pressure 3,5-10bar; diameter actuator 80mm
| dimension | |
|---|---|
| Female thread | G 1 1/2" |
| DN | 40 mm |
| Diameter Actuator | 80 mm |
| pressure | |
| Operating pressure | 0...7 bar |
| Control pressure | 3,5...10 bar |
| characteristics | |
| Medium temperature | -30...+170 °C |
No spare parts are available for this product.
