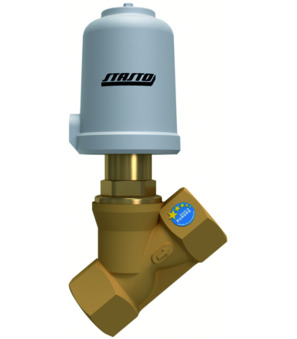

Pneumatically operated seat valve SE01-112-RT81-07
Pneumatically operated seat valve Series SE01-RT; NC; Body Bronze; Seal PTFE; Female thread; For gaseous media (Steam Max. 140°C); Closing with flow; Medium temperature -30...+170°C; G 11/2"; DN 40mm; Operating pressure 0-16bar; Control pressure 5-10bar; Diameter Actuator 80mm; 2 Electrical position indicator (microswitch); Electrical position indicator with cable bushing
Intrastat No.: 84818079
Country of origin: Germany
Short Itemnumber: SE01112RT8107
Country of origin: Germany
Short Itemnumber: SE01112RT8107
pneumatically operated seat valve series SE01-RT; NC; body bronze; seal PTFE; female thread; for gaseous media (steam max. 140°C); closing with flow; medium temperature -30...+170°C; G 11/2"; DN 40mm; operating pressure 0-16bar; control pressure 5-10bar; diameter actuator 80mm; 2 electrical position indicator (microswitch); electrical position indicator with cable bushing
| dimension | |
|---|---|
| Female thread | G 1 1/2" |
| DN | 40 mm |
| Diameter Actuator | 80 mm |
| pressure | |
| Operating pressure | 0...16 bar |
| Control pressure | 5...10 bar |
| characteristics | |
| Medium temperature | -30...+170 °C |
No spare parts are available for this product.
