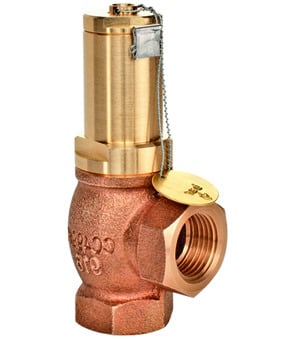

Relief valve RV05-12-13-0,5/2,5-T
Relief valve Series RV05; Oil- and gas-proof cover; Body Bronze; Without TÜV-inspection number; G 1/2"; DN 13mm; Pressure range 0,5...2,5bar; Seal PTFE/FKM; Medium temperature -60...+225°C
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.37 Kg
Short Itemnumber: RV0512130.52.5T
Country of origin: Germany
Weight: 0.37 Kg
Short Itemnumber: RV0512130.52.5T
relief valve series RV05; oil- and gas-proof cover; body bronze; without TÜV-inspection number; G 1/2"; DN 13mm; pressure range 0,5...2,5bar; seal PTFE/FKM; medium temperature -60...+225°C
| dimension | |
|---|---|
| Female thread | G 1/2" |
| DN | 13 mm |
| pressure | |
| Pressure range | 0,5...2,5 bar |
| materials | |
| Seal | PTFE/FKM |
| characteristics | |
| Medium temperature | -60...+225 °C |
Data sheets, Instructions, 3D-files and Certificates...
In your language
ZIPData Sheets
1Data sheet_Relief valve Series RV05_EN.pdf
Download
Assembly and Operating Instructions
1Assembly and operating instructions_Relief valve Series RV05_EN.pdf
Download
Declarations of Conformity
1Declaration of conformity_Relief valve Series RV05_EN.pdf
Download
No spare parts are available for this product.
