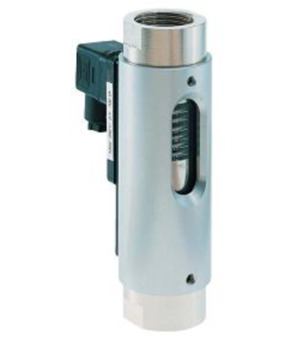

Flow monitors With Inspection glass 1/2"-0,7...2-16-230-3-114
Flow monitors With Inspection glass Series RVO/U; Connections, Float Nickel plated brass; Body Aluminum Not wetted; For any mounting position; Medium temperature Max. 100°C; Water scale; NO contact; Connection 1/2"; Switching range 0,7...2L/min; Maximum pressure 16bar; U max. 230V; I max. 3A; Length 114mm
Intrastat No.: 90261081
Country of origin: Germany
Weight: 0.3 Kg
Short Itemnumber:RV0U22MS
Country of origin: Germany
Weight: 0.3 Kg
Short Itemnumber:RV0U22MS
flow monitors with inspection glass series RVO/U; connections, float nickel plated brass; body aluminum not wetted; for any mounting position; medium temperature max. 100°C; water scale; NO contact; connection 1/2"; switching range 0,7...2l/min; maximum pressure 16bar; U max. 230V; I max. 3A; length 114mm
| dimension | |
|---|---|
| Connection | 1/2" |
| Length | 114 mm |
| Electrical key figures | |
| U max. | 230 V |
| I max. | 3 A |
| pressure | |
| Maximum pressure | 16 bar |
| characteristics | |
| Switching range | 0,7...2 l/min |
No spare parts are available for this product.
