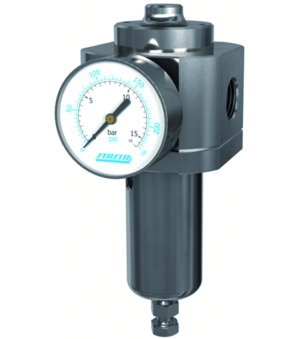

RE09-12-0,5/8-MA-A

RE09-12-0,5/8-MA-A

pressure regulator series RE09; ATEX II 2 G Ex h IIC T6...T2 Gb; relieving; inlet pressure max. 60bar; material stainless steel AISI 316L; connection 1/2"; flow at 6,3bar/Δp=1bar 6200Nl/min; pressure range 0,5...8bar

Intrastat No.: 84811019
Country of origin: Italy
Weight: 1.928 Kg
Short Itemnumber: RE09120.58MAA
https://www.stasto.pl/web/image/product.template/226577/image_1920?unique=ab69362

pressure regulator series RE09; ATEX II 2 G Ex h IIC T6...T2 Gb; relieving; inlet pressure max. 60bar; material stainless steel AISI 316L; connection 1/2"; flow at 6,3bar/Δp=1bar 6200Nl/min; pressure range 0,5...8bar

2.647,90 zł 2647.9 PLN 2.647,90 zł

cena na zapytanie

  • Connection
  • Design
  • Pressure range
  • Flow rate at 6.3bar/Δp=1bar

This combination does not exist.

Availability:
Contact Us

Share

dimension
Connection 1/2"
design
Design ATEX
pressure
Pressure range 0,5...8 bar
characteristics
Flow rate at 6.3bar/Δp=1bar 6200 Nl/min
RE09-12-0,5/8-A x 1.0
Pressure regulator RE09-12-0,5/8-A
pressure regulator series RE09; ATEX II 2 G Ex h IIC T6...T2 Gb; relieving; inlet pressure max. 60bar; material stainless steel AISI 316L; without manometer; connection 1/2"; flow at 6,3bar/Δp=1bar 6166Nl/min; pressure range 0,5...8bar; design ATEX
Add to Cart
4166
4166 x 1.0
4166
Bourdon tube manometer; Material Stainless steel; Front glass Polycarbonat; Ambient temperature -40...+60°C; Medium temperature Max. +100°C; Connection 1/4" Rear; Class 2,5; Diameter 50mm; Indicating range 0-10/0-145; Unit bar/psi
