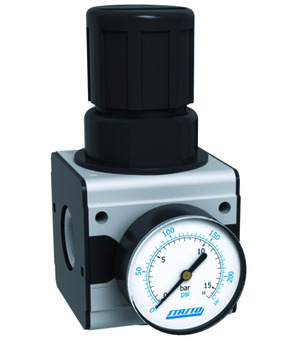

Pressure regulator Series Modul RE03; Relieving; Inlet pressure Max. 16bar; Connection 1/8"; Flow at 6bar/Δp=1bar 1100Nl/min; Pressure range 0,5-10bar
Intrastat No.: 84811099
Country of origin: Germany
Weight: 0.29 Kg
Short Itemnumber: RE0318H0.510MA
Country of origin: Germany
Weight: 0.29 Kg
Short Itemnumber: RE0318H0.510MA
Scope of delivery
pressure regulator, manometer
pressure regulator series Modul RE03; relieving; inlet pressure max. 16bar; connection 1/8"; flow at 6bar/Δp=1bar 1100Nl/min; pressure range 0,5-10bar
Technical specifications
| Connection | 1/8" |
|---|---|
| Pressure range | 0,5...10 bar |
| Flow at 6bar/Δp=1bar | 1100 Nl/min |
| Max. inlet pressure | 16 bar |
| Connection | 1/8" |
| Pressure range | 0,5...10 bar |
| Flow at 6bar/Δp=1bar | 1100 Nl/min |
| Max. inlet pressure | 16 bar |
| Brand | STASTO |
RE03-18H-0,5/10-MA
Documents
Czech / Čeština
Data Sheets
1-
PDF
Datový list · regulátor tlaku RE03-18H-0,5/10-MA · CS
Data sheet 302 KB Updated 25/09/2026
Declarations of Conformity
1-
PDF
Prohlášení o shodě · Úpravné jednotky - série Modul · CS
Declaration of conformity 78 KB Updated 13/06/2026
CAD / 3D
1-
STP
CADSTEP · RE0318H0.510MA
CAD-STEP 445 KB Updated 27/09/2026
Danish / Dansk
Data Sheets
1-
PDF
Datablad · Trykregulator RE03-18H-0,5/10-MA · DA · DK
Data sheet 310 KB Updated 25/09/2026
CAD / 3D
1-
STP
CADSTEP · RE0318H0.510MA
CAD-STEP 445 KB Updated 27/09/2026
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Druckregler RE03-18H-0,5/10-MA · DE
Data sheet 310 KB Updated 25/09/2026
Assembly and Operating Instructions
1-
PDF
Betriebsanleitung · Wartungsgeräte - Serie Modul · DE
Operating instructions 29,6 MB Updated 13/06/2026
Declarations of Conformity
1-
PDF
Konformitätserklärung · Wartungsgeräte - Serie Modul · DE
Declaration of conformity 78 KB Updated 13/06/2026
CAD / 3D
1-
STP
CADSTEP · RE0318H0.510MA
CAD-STEP 445 KB Updated 27/09/2026
Greek / Ελληνικά
Data Sheets
1-
PDF
Δελτίο δεδομένων · Ρυθμιστής πίεσης RE03-18H-0,5/10-MA · EL · GR
Data sheet 313 KB Updated 25/09/2026
CAD / 3D
1-
STP
CADSTEP · RE0318H0.510MA
CAD-STEP 445 KB Updated 27/09/2026
English
Data Sheets
1-
PDF
Data sheet · Pressure regulator RE03-18H-0,5/10-MA · EN
Data sheet 309 KB Updated 25/09/2026
Assembly and Operating Instructions
1-
PDF
Operating instructions · Maintenance devices - series Modul · EN
Operating instructions 29,6 MB Updated 13/06/2026
Declarations of Conformity
1-
PDF
Declaration of conformity · Maintenance devices - series Modul · EN
Declaration of conformity 77 KB Updated 13/06/2026
CAD / 3D
1-
STP
CADSTEP · RE0318H0.510MA
CAD-STEP 445 KB Updated 27/09/2026
Spanish / Español
Data Sheets
1-
PDF
Ficha técnica · Regulador de presión RE03-18H-0,5/10-MA · ES
Data sheet 310 KB Updated 25/09/2026
CAD / 3D
1-
STP
CADSTEP · RE0318H0.510MA
CAD-STEP 445 KB Updated 27/09/2026
Finnish / Suomi
Data Sheets
1-
PDF
Tietolehti · Paineensäädin RE03-18H-0,5/10-MA · FI
Data sheet 309 KB Updated 25/09/2026
CAD / 3D
1-
STP
CADSTEP · RE0318H0.510MA
CAD-STEP 445 KB Updated 27/09/2026
French / Français
Data Sheets
1-
PDF
Fiche technique · Régulateur de pression RE03-18H-0,5/10-MA · FR
Data sheet 311 KB Updated 25/09/2026
CAD / 3D
1-
STP
CADSTEP · RE0318H0.510MA
CAD-STEP 445 KB Updated 27/09/2026
Croatian / hrvatski jezik
Data Sheets
1-
PDF
Podatkovni list · Regulator tlaka RE03-18H-0,5/10-MA · HR
Data sheet 310 KB Updated 25/09/2026
CAD / 3D
1-
STP
CADSTEP · RE0318H0.510MA
CAD-STEP 445 KB Updated 27/09/2026
Hungarian / Magyar
Data Sheets
1-
PDF
Adatlap · nyomásszabályozó RE03-18H-0,5/10-MA · HU
Data sheet 310 KB Updated 25/09/2026
Declarations of Conformity
1-
PDF
Megfelelőségi nyilatkozat · Levegőelőkészítők - Modul széria · HU
Declaration of conformity 78 KB Updated 13/06/2026
CAD / 3D
1-
STP
CADSTEP · RE0318H0.510MA
CAD-STEP 445 KB Updated 27/09/2026
Italian / Italiano
Data Sheets
1-
PDF
Scheda tecnica · Regolatore di pressione RE03-18H-0,5/10-MA · IT
Data sheet 310 KB Updated 25/09/2026
CAD / 3D
1-
STP
CADSTEP · RE0318H0.510MA
CAD-STEP 445 KB Updated 27/09/2026
Norwegian Bokmål / Norsk bokmål
Data Sheets
1-
PDF
Datablad · Trykkregulator RE03-18H-0,5/10-MA · NB · NO
Data sheet 310 KB Updated 25/09/2026
CAD / 3D
1-
STP
CADSTEP · RE0318H0.510MA
CAD-STEP 445 KB Updated 27/09/2026
Dutch / Nederlands
Data Sheets
1-
PDF
Datasheet · Drukregelaar RE03-18H-0,5/10-MA · NL
Data sheet 309 KB Updated 25/09/2026
CAD / 3D
1-
STP
CADSTEP · RE0318H0.510MA
CAD-STEP 445 KB Updated 27/09/2026
Polish / Język polski
Data Sheets
1-
PDF
Arkusz danych · Reduktory ciśnienia RE03-18H-0,5/10-MA · PL
Data sheet 311 KB Updated 25/09/2026
Declarations of Conformity
1-
PDF
Deklaracja zgodności · zespoły przygotowania sprężonego powietrza - seria Modul · PL
Declaration of conformity 78 KB Updated 13/06/2026
CAD / 3D
1-
STP
CADSTEP · RE0318H0.510MA
CAD-STEP 445 KB Updated 27/09/2026
Romanian / română
Data Sheets
1-
PDF
Fișă de date · Regulator de presiune RE03-18H-0,5/10-MA · RO
Data sheet 309 KB Updated 25/09/2026
CAD / 3D
1-
STP
CADSTEP · RE0318H0.510MA
CAD-STEP 445 KB Updated 27/09/2026
Slovenian / slovenščina
Data Sheets
1-
PDF
Podatkovni list · Regulatorji tlaka RE03-18H-0,5/10-MA · SL
Data sheet 310 KB Updated 25/09/2026
Declarations of Conformity
1-
PDF
Izjava o skladnosti · Naprave za pripravo stisnjenega zraka - serija Modul · SL
Declaration of conformity 77 KB Updated 13/06/2026
CAD / 3D
1-
STP
CADSTEP · RE0318H0.510MA
CAD-STEP 445 KB Updated 27/09/2026
Serbian (Latin) / srpski
Data Sheets
1-
PDF
Tehnički list · regulator pritiska RE03-18H-0,5/10-MA · SRLATIN
Data sheet 310 KB Updated 25/09/2026
Declarations of Conformity
1-
PDF
Deklaracija o usklađenosti · Uređaji za pripremu vazduha - serija modul · SRLATIN
Declaration of conformity 78 KB Updated 13/06/2026
CAD / 3D
1-
STP
CADSTEP · RE0318H0.510MA
CAD-STEP 445 KB Updated 27/09/2026
Swedish / Svenska
Data Sheets
1-
PDF
Datablad · Tryckregulator RE03-18H-0,5/10-MA · SV
Data sheet 310 KB Updated 25/09/2026
CAD / 3D
1-
STP
CADSTEP · RE0318H0.510MA
CAD-STEP 445 KB Updated 27/09/2026
RE03-18H-0,5/10
x 1.0 Pcs
RE03-18H-0,5/10
Pressure regulator; Relieving; Connection 1/8"; Flow at 6bar 1030Nl/min; Pressure range 0,5-10bar; Max. inlet pressure 16bar
MA001-40R-16-D
x 1.0 Pcs
Bourdon tube manometer MA001-40R-16-D
Bourdon tube manometer Series MA001; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 40mm; Indicating range 0-16/0-230; Unit bar/psi; Connection 1/8"
