Pressure regulator RE03-10H-0,1/3-MA

Price:

818,00 zł

Home
Search
⁰
Wishlist
Account

Pressure regulator Series Modul RE03 Store

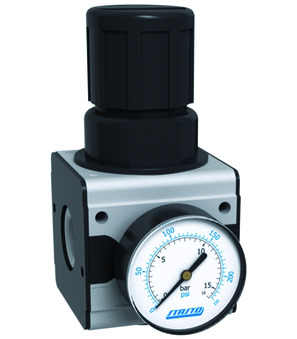

Pressure regulator RE03-10H-0,1/3-MA

Pressure regulator RE03-10H-0,1/3-MA

Pressure regulator Series Modul RE03; Relieving; Inlet pressure Max. 16bar; Connection 1"; Flow at 6bar/Δp=1bar 15000Nl/min; Pressure range 0,1-3bar

Intrastat No.: 84811099
Country of origin: Germany
Weight: 1.85 Kg
Short Itemnumber:RE0310H0.13MA

pressure regulator series Modul RE03; relieving; inlet pressure max. 16bar; connection 1"; flow at 6bar/Δp=1bar 15000Nl/min; pressure range 0,1-3bar

818,00 zł 818.0 PLN 818,00 zł

Connection
- 1"
Dimension
- 55
Pressure range
- 0,1...3 bar
Max. inlet pressure
- 16 bar
Flow at 6bar/Δp=1bar
- 15000 Nl/min

This combination does not exist.

Availability:

Add to Cart

dimension
Connection	1"
Dimension	55
pressure
Pressure range	0,1...3 bar
characteristics
Max. inlet pressure	16 bar
Flow at 6bar/Δp=1bar	15000 Nl/min

Data sheets, Instructions, 3D-files and Certificates...

In your language

Data Sheets

1

Data sheet_Pressure regulator RE03-10H-0,1/3-MA_EN.pdf

Assembly and Operating Instructions

1

Operating instructions_Maintenance devices - series Modul_EN.pdf

Declarations of Conformity

1

Declaration of conformity_Maintenance devices - series Modul_EN.pdf

CAD / 3D

1

CADSTEP_RE0310H0.13MA.stp

Datové listy

1

Datový list_regulátor tlaku RE03-10H-0,1/3-MA_CS.pdf

Prohlášení o shodě

1

Prohlášení o shodě_Úpravné jednotky - série Modul_CS.pdf

Data Sheets

1

Datablad_Trykregulator RE03-10H-0,1/3-MA_DA_DK.pdf

Datenblätter

1

Datenblatt_Druckregler RE03-10H-0,1/3-MA_DE.pdf

Montage- und Betriebsanleitungen

1

Betriebsanleitung_Wartungsgeräte - Serie Modul_DE.pdf

Konformitätserklärungen

1

Konformitätserklärung_Wartungsgeräte - Serie Modul_DE.pdf

Data Sheets

1

Δελτίο δεδομένων_Ρυθμιστής πίεσης RE03-10H-0,1/3-MA_EL_GR.pdf

Data Sheets

1

Ficha técnica_Regulador de presión RE03-10H-0,1/3-MA_ES.pdf

Data Sheets

1

Tietolehti_Paineensäädin RE03-10H-0,1/3-MA_FI.pdf

Data Sheets

1

Fiche technique_Régulateur de pression RE03-10H-0,1/3-MA_FR.pdf

Data Sheets

1

Podatkovni list_Regulator tlaka RE03-10H-0,1/3-MA_HR.pdf

Adatlapok

1

Adatlap_nyomásszabályozó RE03-10H-0,1/3-MA_HU.pdf

Megfelelőségi nyilatkozatok

1

Megfelelőségi nyilatkozat_Levegőelőkészítők - Modul széria_HU.pdf

Data Sheets

1

Scheda tecnica_Regolatore di pressione RE03-10H-0,1/3-MA_IT.pdf

Data Sheets

1

Datablad_Trykkregulator RE03-10H-0,1/3-MA_NB_NO.pdf

Data Sheets

1

Datasheet_Drukregelaar RE03-10H-0,1/3-MA_NL.pdf

Karty katalogowe

1

Arkusz danych_Reduktory ciśnienia RE03-10H-0,1/3-MA_PL.pdf

Deklaracje zgodności

1

Deklaracja zgodności_zespoły przygotowania sprężonego powietrza - seria Modul_PL.pdf

Data Sheets

1

Fișă de date_Regulator de presiune RE03-10H-0,1/3-MA_RO.pdf

Podatkovni listi

1

Podatkovni list_Regulatorji tlaka RE03-10H-0,1/3-MA_SL.pdf

Izjave o skladnosti

1

Izjava o skladnosti_Naprave za pripravo stisnjenega zraka - serija Modul_SL.pdf

Data Sheets

1

Tehnički list_regulator pritiska RE03-10H-0,1/3-MA_SRLATIN.pdf

Declarations of Conformity

1

Deklaracija o usklađenosti_Uređaji za pripremu vazduha - serija modul_SRLATIN.pdf

Data Sheets

1

Datablad_Tryckregulator RE03-10H-0,1/3-MA_SV.pdf

RE03-10H-0,1/3 x 1.0

RE03-10H-0,1/3

Pressure regulator; Relieving; Connection 1"; Flow at 6bar 15000Nl/min; Pressure range 0,1-3bar; Max. inlet pressure 16bar

Bourdon tube manometer MA001-63R-4-D

MA001-63R-4-D x 1.0

Bourdon tube manometer MA001-63R-4-D

Bourdon tube manometer Series MA001; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 63mm; Indicating range 0-4/0-58; Unit bar/psi; Connection 1/4"
