R0S013

R0S013

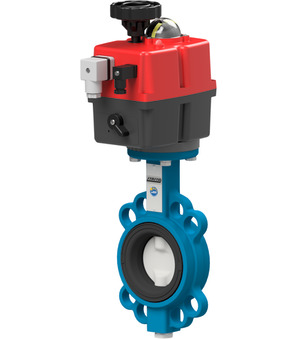

Butterfly valve with electrical actuator; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 80mm; Length 46mm; Operating time 14s; Voltage 24...240VAC / 24...135VDC, With 1 mechanical limit switch Mounted

Intrastat No.: 84818085
Country of origin: Spain
Weight: 6.61 Kg
Short Itemnumber: R0S013
https://www.stasto.pl/web/image/product.template/161933/image_1920?unique=889c0b6

butterfly valve with electrical actuator; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...16bar; DN 80mm; length 46mm; operating time 14s; voltage 24...240VAC / 24...135VDC, with 1 mechanical limit switch mounted

3.859,70 zł 3859.7 PLN 3.859,70 zł

cena na zapytanie

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW6-080-DSE-B x 1.0
    Butterfly valve with bare shaft BUW6-080-DSE-B
    Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 80mm; Length 46mm; Pressure range 0…16bar; Flange PN10/16/ANSI150
    Add to Cart
    J4C55-0H13-Q14 x 1.0
    Electrical actuator J4C55-0H13-Q14
    Electrical actuator Series J4C; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 55Nm; Operating time 13s; Flange ISO5211 F05/F07-star 14mm; Voltage 24...240VDC/AC (50-60Hz); Protection class IP67
    Add to Cart
