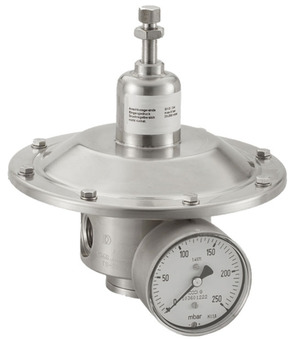

Low pressure regulator PR25-34-0,01/0,12-0
Low pressure regulator Series PR25; Body 1.4404; Seals FKM; Medium temperature -0...80°C; Manometer connection 1/4"; Medium Nitrogen; Connection Inlet G 3/4"; Outlet G 3/4"; Pressure range 0,01-0,12bar; Max. inlet pressure 7bar; Flow at 6bar/Δp=5bar 3000Nl/min; Suitable manometer MA046-63R-160
Intrastat No.: 84811019
Country of origin: Italy
Weight: 0.4 Kg
Short Itemnumber: PR25340.010.120
Country of origin: Italy
Weight: 0.4 Kg
Short Itemnumber: PR25340.010.120
low pressure regulator series PR25; body AISI 316L; seals FKM; medium temperature -0...80°C; manometer connection 1/4"; medium nitrogen; connection inlet G 3/4"; outlet G 3/4"; pressure range 0,01-0,12bar; max. inlet pressure 7bar; flow at 6bar/Δp=5bar 3000Nl/min; suitable manometer MA046-63R-160
| dimension | |
|---|---|
| Input connection | G 3/4" |
| pressure | |
| Pressure range | 0,01...0,12 bar |
| characteristics | |
| Max. inlet pressure | 7 bar |
| Suitable manometer | MA046-63R-160 |
| Flow rate at 6bar/Δp=5bar | 3000 Nl/min |
| Others | |
| Output thread | G 3/4" |
No spare parts are available for this product.
