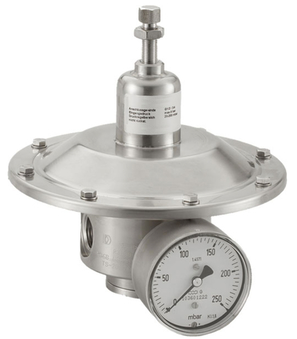

Low pressure regulator PR25-12W1-0,02/0,2-0

Low pressure regulator PR25-12W1-0,02/0,2-0

Low pressure regulator Series PR25; Body 1.4404; Seals FKM; Medium temperature -0...80°C; Manometer connection 1/4"; Medium Nitrogen; Connection Inlet G 1/2"; Outlet G 3/4"; Pressure range 0,02-0,2bar; Max. inlet pressure 6bar; Flow at 6bar/Δp=5bar 1000Nl/min; Suitable manometer MA046-63R-250

Intrastat No.: 84811019
Country of origin: Italy
Weight: 2.07 Kg
Short Itemnumber: PR2512W10.020.20
https://www.stasto.pl/web/image/product.template/132822/image_1920?unique=851b6af

low pressure regulator series PR25; body AISI 316L; seals FKM; medium temperature -0...80°C; manometer connection 1/4"; medium nitrogen; connection inlet G 1/2"; outlet G 3/4"; pressure range 0,02-0,2bar; max. inlet pressure 6bar; flow at 6bar/Δp=5bar 1000Nl/min; suitable manometer MA046-63R-250

6.726,30 zł 6726.3 PLN 6.726,30 zł

cena na zapytanie

excl. tax
  • Input connection
  • Pressure range
  • Max. inlet pressure
  • Suitable manometer
  • Flow rate at 6bar/Δp=5bar
  • Output thread

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0,02...0,2 bar
Connection Inlet G 1/2"
Input connection G 1/2"
Output thread G 3/4"
All specifications (7)
Documents
Data sheets, drawings and CAD files
Pressure range 0,02...0,2 bar
Connection Inlet G 1/2"
Input connection G 1/2"
Output thread G 3/4"
Max. inlet pressure 6 bar
Flow rate at 6bar/Δp=5bar 1000 Nl/min
Suitable manometer MA046-63R-250

PR25-12W1-0,02/0,2-0

Documents

1 Documents

German / Deutsch
ZIP

Data Sheets

1
No spare parts are available for this product.
