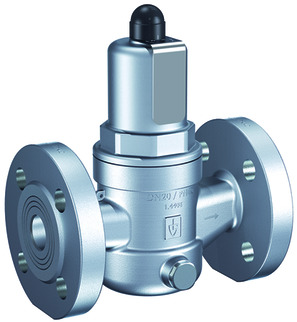

Flange pressure regulator PR12-80H-1/8-E

Flange pressure regulator PR12-80H-1/8-E

Flange pressure regulator Series PR12-E; Body 1.4408; Flange PN40; Fine screen Stainless steel; Seals EPDM; Medium temperature -20...120°C; DN 80mm; Maximum inlet pressure 40bar; Operating pressure range 1...8bar; Mesh size 0,75mm; Suitable manometer 4129 + 4126

Intrastat No.: 84811019
Country of origin: Germany Made in Europe
Weight: 0.53 Kg
Short Itemnumber: PR1280H18E

Scope of delivery

pressure regulator without manometer
https://www.stasto.pl/web/image/product.template/96180/image_1920?unique=964a29e

flange pressure regulator series PR12-E; body AISI 316; flange PN40; fine screen stainless steel; seals EPDM; medium temperature -20...120°C; DN 80mm; maximum inlet pressure 40bar; operating pressure range 1...8bar; mesh size 0,75mm; suitable manometer 4129 + 4126

26.091,10 zł 26091.1 PLN 26.091,10 zł

cena na zapytanie

excl. tax
  • DN
  • Mesh size
  • Outlet pressure
  • Inlet pressure
  • Suitable manometer

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

DN 80 mm
Inlet pressure Max. 40 bar
Outlet pressure 1...8 bar
Mesh size 0,75 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
DN 80 mm
Inlet pressure Max. 40 bar
Outlet pressure 1...8 bar
Mesh size 0,75 mm
Suitable manometer 4129 + 4126

PR12-80H-1/8-E

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
No spare parts are available for this product.
