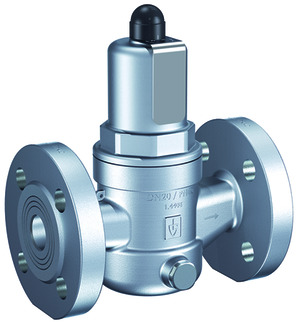

Flange pressure regulator PR12-50H-0.5/2-E-3K
Flange pressure regulator Series PR12-E; Body 1.4408; Fine screen Stainless steel; Seals EPDM; Medium temperature -20...120°C; Seals With FDA-Approval; Diaphragm With Drinking water certification; DN 50mm; Flange PN40; Maximum inlet pressure 25bar; Operating pressure range 0,5...2bar; Mesh size 0,75mm; Suitable manometer 4163
Intrastat No.: 84811019
Country of origin: Germany
Weight: 10.9 Kg
Short Itemnumber:PR1250H0.52E3K
Country of origin: Germany
Weight: 10.9 Kg
Short Itemnumber:PR1250H0.52E3K
flange pressure regulator series PR12-E; body AISI 316; fine screen stainless steel; seals EPDM; medium temperature -20...120°C; seals with FDA-approval; diaphragm with drinking water certification; DN 50mm; flange PN40; maximum inlet pressure 25bar; operating pressure range 0,5...2bar; mesh size 0,75mm; suitable manometer 4163
| dimension | |
|---|---|
| DN | 50 mm |
| Flange | PN40 |
| Mesh size | 0,75 mm |
| pressure | |
| Outlet pressure | 0,5...2 bar |
| Inlet pressure | Max. 25 bar |
| characteristics | |
| Suitable manometer | 4163 |
No spare parts are available for this product.
| dimension | |
|---|---|
| DN | 50 mm |
| Flange | PN40 |
| Mesh size | 0,75 mm |
| pressure | |
| Outlet pressure | 0,5...2 bar |
| Inlet pressure | Max. 25 bar |
| characteristics | |
| Suitable manometer | 4163 |
No spare parts are available for this product.
