PR0003

PR0003

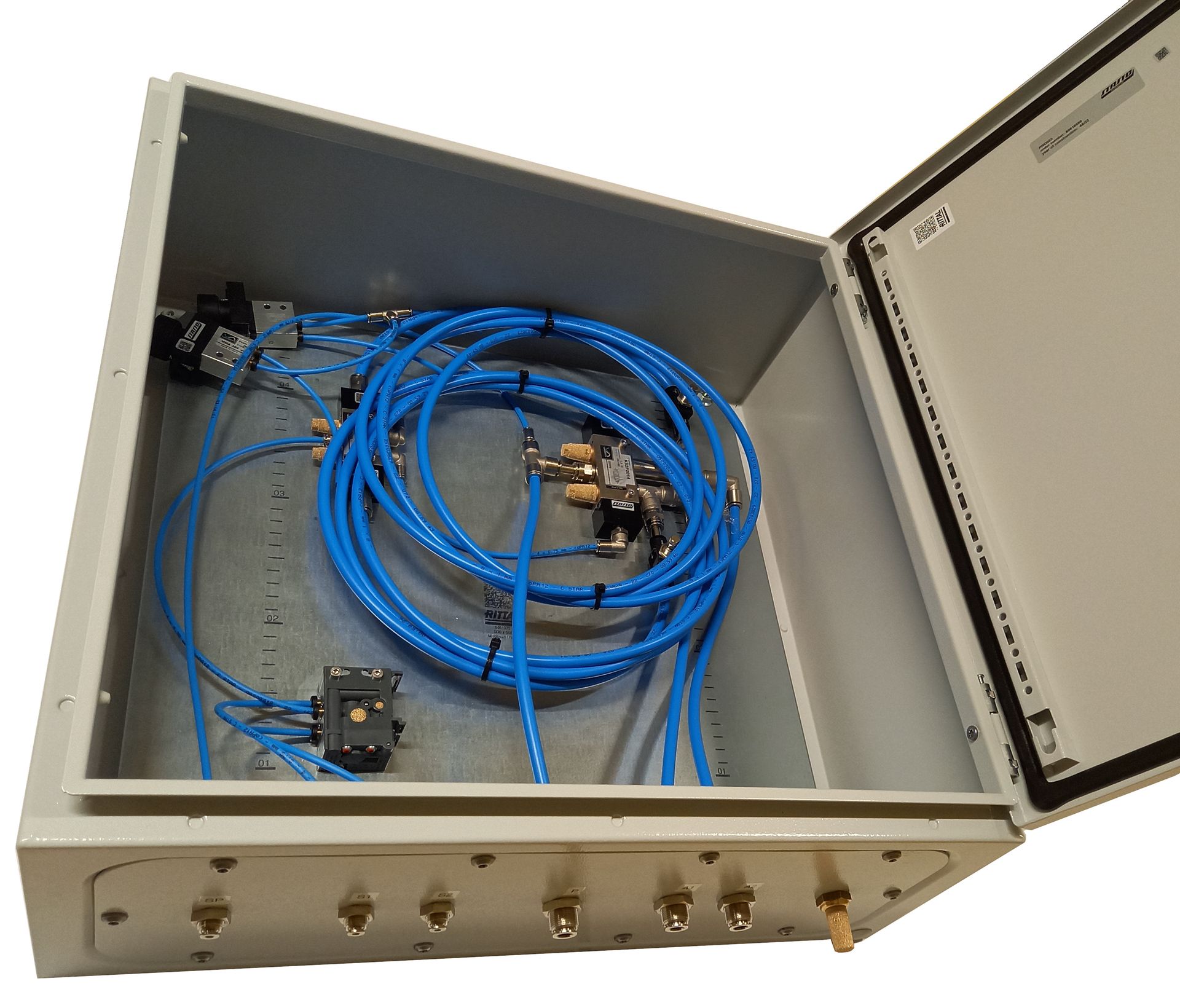

STASTO Combination
Fully assembled and tested
Consists of:
Control unit 500x500x210mm;
1x Two-hand safety valve; Connection 4mm;
1x 5/2-way valve; Pneumatic/pneumatic; G1/8";
1x 5/2-way valve; Pneumatic/pneumatic; G1/4";
2x Logic unit; Function OR unit;
3x Bulkhead fitting 8mm;
3x Bulkhead fitting 4mm

Intrastat No.: 84812090
Country of origin: Germany
Weight: 16.86 Kg
Short Itemnumber: PR0003
https://www.stasto.pl/web/image/product.template/171437/image_1920?unique=8d26980

STASTO combination
fully assembled and tested
consists of:
control unit 500x500x210mm;
1x two-hand safety valve; connection 4mm;
1x 5/2-way valve; pneumatic/pneumatic; G1/8";
1x 5/2-way valve; pneumatic/pneumatic; G1/4";
2x logic unit; function OR unit;
3x bulkhead fitting 8mm;
3x bulkhead fitting 4mm

4.983,00 zł 4983.0 PLN 4.983,00 zł

cena na zapytanie

excl. tax
  • Connection
  • Dimension
  • Function
  • Max. inlet pressure
  • Flow at 6bar/Δp=1bar
  • Filter element
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Brand STASTO
Documents
Data sheets, drawings and CAD files
Brand STASTO

PR0003

Documents

1 Documents

German / Deutsch
ZIP

Assembly and Operating Instructions

1
Two-hand safety valve 4
ZH-A-N x 1.0 Pcs
Two-hand safety valve 4
Two-hand safety valve; Nominal diameter 2,5mm; Permissible switching differential Max. 0,4Sec..; Pressure range 2,5...8bar; Connection 4mm
5/2-way valve K52P2018
K52P2018 x 1.0 Pcs
5/2-way valve K52P2018
5/2-way valve Series K5.P; Pressure range 1...9bar; Actuation Pneumatic/pneumatic; Connection 1/8"; DN 6mm; Flow rate 690Nl/min; Suitable silencer SLN-RB
Silencer SLN-M18-RB
SLN-M18-RB x 2.0 Pcs
Silencer SLN-M18-RB
Silencer Series SLN-RB; Sinterbronze; Thread Steel copper plated; Operating pressure Max. 16bar; Connection 1/8"; Length 23mm
5/2-way valve K52P2014
K52P2014 x 1.0 Pcs
5/2-way valve K52P2014
5/2-way valve Series K5.P; Pressure range 1...9bar; Actuation Pneumatic/pneumatic; Connection 1/4"; DN 8mm; Flow rate 1300Nl/min; Suitable silencer alle
Silencer SLN-M14-RB
SLN-M14-RB x 2.0 Pcs
Silencer SLN-M14-RB
Silencer Series SLN-RB; Sinterbronze; Thread Steel copper plated; Operating pressure Max. 16bar; Connection 1/4"; Length 28mm
Reduction PI12-04-08-N
PI12-04-08-N x 1.0 Pcs
Reduction PI12-04-08-N
Reduction Series PI12; Nickel plated brass; Diameter 1 4mm; Diameter 2 8mm
Plastic hose CP-4/2,5-BU-1
CP-4/2,5-BU-1 x 10.0 m
Plastic hose CP-4/2,5-BU-1
Plastic hose Series CP; Material Co-polyurethane; Multiplier for operating pressure 30°C = 0,87 / 80°C = 0,40; Vacuum -0,87bar; Temperature range -40...100°C; Outside diameter 4mm; Inside diameter 2,5mm; Operating pressure at 23°C 20bar; Colour blau
Plastic hose CP-8/6-BU-1
CP-8/6-BU-1 x 7.0 m
Plastic hose CP-8/6-BU-1
Plastic hose Series CP; Material Co-polyurethane; Multiplier for operating pressure 30°C = 0,87 / 80°C = 0,40; Vacuum -0,87bar; Temperature range -40...100°C; Outside diameter 8mm; Inside diameter 6mm; Operating pressure at 23°C 15bar; Colour Blue
AX1050.000
AX1050.000 x 1.0 Pcs
AX1050.000
Enclosure; Sheet steel; Height: 500 mm, Width: 500 mm, Depth: 210 mm
T-connector PI29-08-N
PI29-08-N x 1.0 Pcs
T-connector PI29-08-N
T-connector Series PI29; Nickel plated brass; Diameter 8mm; Diameter 8mm
Extension 1/4"
TH12-14-N-L43 x 1.0 Pcs
Extension 1/4"
Extension Series TH12; Nickel plated brass; Cylindrical thread; Thread 1/4"
Silencer SLN-M14-BB
SLN-M14-BB x 1.0 Pcs
Silencer SLN-M14-BB
Silencer Series SLN-BB; Sinterbronze; Thread Brass; Operating pressure Max. 16bar; Connection 1/4"; Length 32mm
