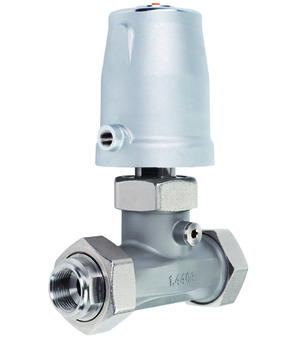

Pinch valve PI04-12-EZS-51

Pinch valve PI04-12-EZS-51

Pinch valve Series PI04; NO; Connection parts 1.4435; Tube EPDM Food safe; Control pressure has to be adjusted acc. to diagram in data-sheet; Medium temperature -30...+95°C; RP 1/2"; DN 15mm; Pressure range 0…6bar; Diameter Actuator 50mm

Intrastat No.: 84818079
Country of origin: Germany Made in Europe
Weight: 2.17 Kg
Short Itemnumber: PI0412EZS51
https://www.stasto.pl/web/image/product.template/100761/image_1920?unique=b5fa7f5

pinch valve series PI04; NO; connection parts AISI 316L; tube EPDM food safe; control pressure has to be adjusted acc. to diagram in data-sheet; medium temperature -30...+95°C; RP 1/2"; DN 15mm; pressure range 0…6bar; diameter actuator 50mm

3.630,40 zł 3630.4 PLN 3.630,40 zł

cena na zapytanie

excl. tax
  • Female thread
  • DN
  • Diameter Actuator
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...6 bar
Connection parts 1.4435
Female thread RP 1/2"
DN 15 mm
All specifications (5)
Pressure range 0...6 bar
Connection parts 1.4435
Female thread RP 1/2"
DN 15 mm
Diameter Actuator 50 mm
ST-PI03/04-15/20-E
ST-PI03/04-15/20-E x 1.0 Pcs
ST-PI03/04-15/20-E
Tubes; Suitable for Pinch valve Series PI03/PI04; Nominal diameter 15, 20mm; Material EPDM lebensmittelecht
Accessory Products
ST-PI03/04-15/20-E
ST-PI03/04-15/20-E
DN
15...20 mm
