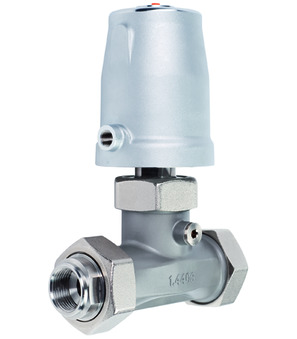

Pinch valve PI03-112-EZS-1252

Pinch valve PI03-112-EZS-1252

Pinch valve Series PI03; NC; Connection parts 1.4435; Tube EPDM Food safe; Medium temperature -30...+95°C; RP 11/2"; DN 40mm; Pressure range 0…4bar; Control pressure 2,2…10bar; Diameter Actuator 125mm

Intrastat No.: 84818079
Country of origin: Germany Made in Europe
Weight: 8.07 Kg
Short Itemnumber: PI03112EZS1252
https://www.stasto.pl/web/image/product.template/100717/image_1920?unique=fa928cc

pinch valve series PI03; NC; connection parts AISI 316L; tube EPDM food safe; medium temperature -30...+95°C; RP 11/2"; DN 40mm; pressure range 0…4bar; control pressure 2,2…10bar; diameter actuator 125mm

13.558,60 zł 13558.6 PLN 13.558,60 zł

cena na zapytanie

excl. tax
  • Female thread
  • DN
  • Diameter Actuator
  • Pressure range
  • Control pressure

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...4 bar
Connection parts 1.4435
Female thread RP 1 1/2"
DN 40 mm
All specifications (6)
Pressure range 0...4 bar
Connection parts 1.4435
Female thread RP 1 1/2"
DN 40 mm
Control pressure 2,2...10 bar
Diameter Actuator 125 mm
ST-PI03/04-40/50-E
ST-PI03/04-40/50-E x 1.0 Pcs
ST-PI03/04-40/50-E
Tubes; Suitable for Pinch valve Series PI03/PI04; Nominal diameter 40, 50mm; Material EPDM lebensmittelecht
Accessory Products
ST-PI03/04-40/50-E
ST-PI03/04-40/50-E
DN
40...50 mm
