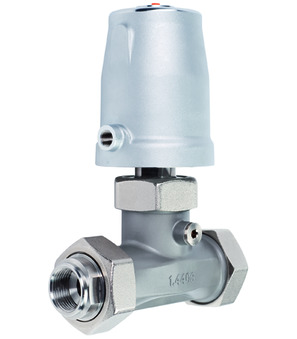

Pinch valve PI03-10-VZS-82
Pinch valve Series PI03; NC; Connection parts 1.4435; Tube FKM; Medium temperature -10...+130°C; RP 1"; DN 25mm; Pressure range 0..6bar; Control pressure 4,4...10bar; Diameter Actuator 80mm
Intrastat No.: 84818079
Country of origin: Germany
Weight: 5.35 Kg
Short Itemnumber: PI0310VZS82
Country of origin: Germany
Weight: 5.35 Kg
Short Itemnumber: PI0310VZS82
pinch valve series PI03; NC; connection parts AISI 316L; tube FKM; medium temperature -10...+130°C; RP 1"; DN 25mm; pressure range 0..6bar; control pressure 4,4...10bar; diameter actuator 80mm
| dimension | |
|---|---|
| Female thread | RP 1" |
| DN | 25 mm |
| Diameter Actuator | 80 mm |
| pressure | |
| Pressure range | 0...6 bar |
| Control pressure | 4,4...10 bar |
No spare parts are available for this product.
