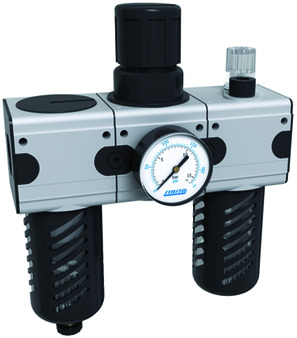

MU303-12-0,5/16-P-A

MU303-12-0,5/16-P-A

Maintenance unit; Relieving; Drain valve Automatically; Pressure range 0,5...16bar; Plastic bowl with protection cage; Connection 1/2"; Flow at 6bar/Δp=1bar 3000Nl/min; Max. inlet pressure 16bar; Filter element 5µm; Bowl With transparent inspection pipe

Intrastat No.: 84811005
Country of origin: Germany
Weight: 2.79 Kg
Short Itemnumber: MU303120.516PA
https://www.stasto.pl/web/image/product.template/162085/image_1920?unique=33b4040

maintenance unit; relieving; drain valve automatically; pressure range 0,5...16bar; plastic bowl with protection cage; connection 1/2"; flow at 6bar/Δp=1bar 3000Nl/min; max. inlet pressure 16bar; filter element 5µm; bowl with transparent inspection pipe

1.715,60 zł 1715.6 PLN 1.715,60 zł

cena na zapytanie

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 1/2"
Pressure range 0,5...16bar
Brand STASTO
Connection 1/2"
Pressure range 0,5...16bar
Brand STASTO
Filter FI03-12
FI03-12 x 1.0 Pcs
Filter FI03-12
Filter Series Modul FI03; Drain valve Semi-automatic; Inlet pressure Max. 16bar; Plastic bowl; Filter element 5µm; Connection 1/2"; Flow at 6bar/Δp=1bar 4000Nl/min
PC-03-12-10
PC-03-12-10 x 2.0 Pcs
PC-03-12-10
Protection cage; Suitable for Maintenance units Series Modul; Connection 1/2", 3/4", 1"
B0AV-FI03-12/10H
B0AV-FI03-12/10H x 1.0 Pcs
B0AV-FI03-12/10H
Plastic bowl; Suitable for Filter, Filter regulator Series Modul FI/FR03; Connection 12", 3/4", 1"; Drain valve automatisch
RE03-12-0,5/16 x 1.0 Pcs
RE03-12-0,5/16
Pressure regulator; Relieving; Connection 1/2"; Flow at 6bar 5700Nl/min; Pressure range 0,5-16bar; Max. inlet pressure 16bar
Lubricator LU03-12H
LU03-12H x 1.0 Pcs
Lubricator LU03-12H
Lubricator Series Modul LU03; Inlet pressure Max. 16bar; Plastic bowl; Connection 1/2"; Flow at 6bar/Δp=1bar 5000Nl/min
MCS03-12/34
MCS03-12/34 x 2.0 Pcs
MCS03-12/34
Connection set For 2 units; Connection 1/2", 3/4"
Bourdon tube manometer MA001-50R-25-D
MA001-50R-25-D x 1.0 Pcs
Bourdon tube manometer MA001-50R-25-D
Bourdon tube manometer Series MA001; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 50mm; Indicating range 0-25/0-360; Unit bar/psi; Connection 1/4"
KART0N112 x 1.0 Pcs
KART0N112
Packaging board, 303X215X135
