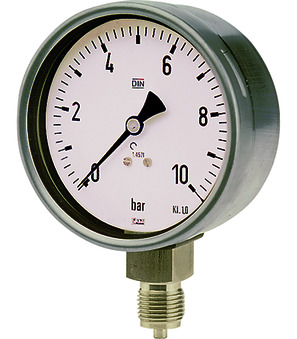

Bourdon tube manometer MA073-100B-10-A01
bourdon tube manometer series MA073; safety version EN837-1 S3; break-proofed separating plate; blow-out back; housing stainless steel measuring unit, motion work stainless steel AISI 316Ti; front glass laminated safety glass; ambient temperature -40...+60°C; medium temperature max. +200°C; connection below; connection G1/2"; diameter 100mm; indicating range 0...10; unit bar; class 1,0; ATEX 2014/34/EU; Ex II 2G Ex h IIC T6...T1 Gb X; Ex II 2D Ex h IIIC T6...T1 Db X
BVS 12 ATEX H/B 079; incl. drag indicator
Country of origin: Austria
Short Itemnumber:MA073100B10A01
bourdon tube manometer series MA073; safety version EN837-1 S3; break-proofed separating plate; blow-out back; housing stainless steel measuring unit, motion work stainless steel AISI 316Ti; front glass laminated safety glass; ambient temperature -40...+60°C; medium temperature max. +200°C; connection below; connection G1/2"; diameter 100mm; indicating range 0...10; unit bar; class 1,0; ATEX 2014/34/EU; Ex II 2G Ex h IIC T6...T1 Gb X; Ex II 2D Ex h IIIC T6...T1 Db X
BVS 12 ATEX H/B 079; incl. drag indicator
| dimension | |
|---|---|
| Diameter | 100 mm |
| Connection | 1/2" |
| design | |
| Design | ATEX |
| characteristics | |
| Indicating range | 0...10 |
| Unit | bar |
| Class | 1,0 |
| dimension | |
|---|---|
| Diameter | 100 mm |
| Connection | 1/2" |
| design | |
| Design | ATEX |
| characteristics | |
| Indicating range | 0...10 |
| Unit | bar |
| Class | 1,0 |
