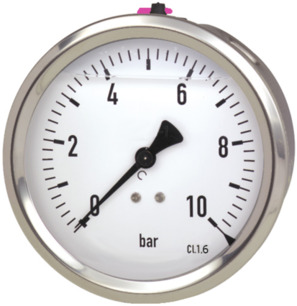

Glycerin manometer MA038-50R-10
Glycerin manometer Series MA038-R; Bourdon tube manometer; Body Stainless steel; Front ring Stainless steel Bright; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection rear; Class 1,6; Diameter 50mm; Indicating range 0-10; Unit bar; Connection 1/4"
Intrastat No.: 90262040
Country of origin: Austria
Weight: 100.0 Kg
Short Itemnumber: MA03850R10
Country of origin: Austria
Weight: 100.0 Kg
Short Itemnumber: MA03850R10
glycerin manometer series MA038-R; bourdon tube manometer; body stainless steel; front ring stainless steel bright; measuring unit, motion work copper based alloy; front glass acryl; ambient temperature -20...+60°C; medium temperature max. +60°C; connection rear; class 1,6; diameter 50mm; indicating range 0-10; unit bar; connection 1/4"
| dimension | |
|---|---|
| Diameter | 50 mm |
| Connection | 1/4" |
| characteristics | |
| Indicating range | 0...10 |
| Unit | bar |
| Class | 1,6 |
No spare parts are available for this product.
