Glycerin manometer Series MA030-B Store

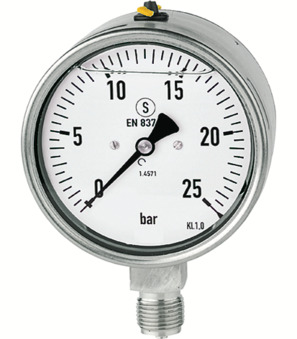

Glycerin manometer MA030-63NB-10

Glycerin manometer MA030-63NB-10

glycerin manometer series MA030-B; bourdon tube manometer; housing stainless steel AISI 304; measuring unit AISI 316L; front glass flat instrument glass; ambient temperature -20...+60°C; medium temperature max. +100°C; connection below; diameter 63mm; indicating range 0...10; unit bar; class 1,6; connection 1/4"NPT

Intrastat No.: 90262040
Country of origin: Austria
Short Itemnumber: MA03063NB10

glycerin manometer series MA030-B; bourdon tube manometer; housing stainless steel AISI 304; measuring unit AISI 316L; front glass flat instrument glass; ambient temperature -20...+60°C; medium temperature max. +100°C; connection below; diameter 63mm; indicating range 0...10; unit bar; class 1,6; connection 1/4"NPT

On request

Diameter
- 63 mm
Connection
- 1/4" NPT
Indicating range
- 0...10
Unit
- bar
Class
- 1,6

This combination does not exist.

Availability:

dimension
Diameter	63 mm
Connection	1/4" NPT
characteristics
Indicating range	0...10
Unit	bar
Class	1,6

Data sheets, Instructions, 3D-files and Certificates...

In your language

Data Sheets

1

Data sheet_Glycerin manometer Series MA030-B_EN.pdf

Datové listy

1

Datový list_glycerinový manometr série MA030-B_CS.pdf

Datenblätter

1

Datenblatt_Glyzerinmanometer Serie MA030-B_DE.pdf

Adatlapok

1

Adatlap_glicerines nyomásmérő óra sorozat MA030-B_HU.pdf

Karty katalogowe

1

Arkusz danych_manometr glicerynowy Seria MA030-B_PL.pdf

Podatkovni listi

1

Podatkovni list_Glicerinski manometer serija MA030-B_SL.pdf

Data Sheets

1

Tehnički list_glicerinski manometar serije MA030-B_SRLATIN.pdf

No spare parts are available for this product.
