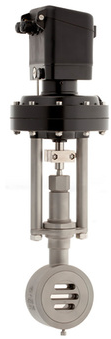

Sliding gate valve with diaphragm-actuator SG07...
Sliding gate valve with diaphragm-actuator Series SG09; Electro-pneumatically operated; Type GS3; Nominal diameter DN15...DN250; Nominal pressure PN16/40; PN100; ANSI150; ANSI300; ANSI600; Wafer type; Material Carbon steel, Stainless steel 1.4581;Medium temperature -60...350°C; Characteristic of either linear or equal percentage; Control of high differential pressure with small actuator, With integrated digital i/p-positioner; Optionally available: Position feedback, Metal bellow, Limit switch, Pneumatic positioner, Etc.
Universally applicable control valve; Fast response time due to small stroke; High kvs-value; Low weight; For switching neutral to highly aggressive media in the chemicals, process engineering, plant construction etc.
Information: The type code as specified in the technical data sheet must be provided for enquiries/orders
Country of origin: Austria
Weight: 0.0 Kg
Short Itemnumber:SG09...
sliding gate valve with diaphragm-actuator series SG07; electro-pneumatically operated; type GS1; nominal diameter DN15...DN150; nominal pressure PN16/40; wafer type; material carbon steel, stainless steel AISI 316Ti;medium temperature -60...350°C; characteristic of either linear or equal percentage; control of high differential pressure with small actuator, with integrated digital i/p-positioner; optionally available: position feedback, metal bellow, limit switch, pneumatic positioner, etc.
universally applicable control valve; fast response time due to small stroke; high kvs-value; low weight; for switching neutral to highly aggressive media in the chemicals, process engineering, plant construction etc.
information: The type code as specified in the technical data sheet must be provided for enquiries/orders
| Information | The type code as specified in the technical data sheet must be provided for enquiries/orders |
