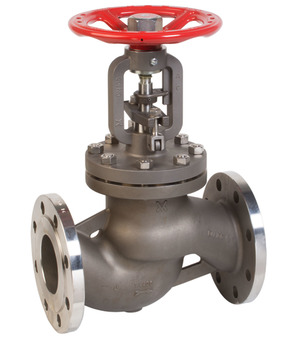

GL116-50-W-AC-013C
globe valve; ATEX Il Ex h IIC T2 Gb / II Ex h IIIC T300°C Db; flanged type PN40; bellow; body AISI 316; seat, control cone, stem stainless steel AISI 316; seat seal PTFE; handwheel steel; packing gland graphite; medium temperature -10...+180°C; pressure range 0...40bar; DN 50mm; length 230mm; locking device; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness
Country of origin: Italy
Weight: 13.4 Kg
Short Itemnumber: GL11650WAC013C
globe valve; ATEX Il Ex h IIC T2 Gb / II Ex h IIIC T300°C Db; flanged type PN40; bellow; body AISI 316; seat, control cone, stem stainless steel AISI 316; seat seal PTFE; handwheel steel; packing gland graphite; medium temperature -10...+180°C; pressure range 0...40bar; DN 50mm; length 230mm; locking device; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness
| Design | ATEX |
