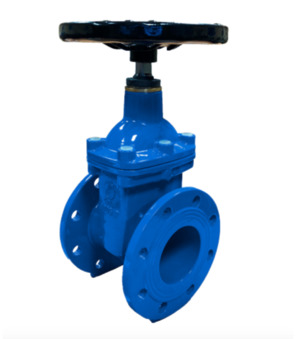

Gate valve with hand wheel GA032-150-W

Gate valve with hand wheel GA032-150-W

Gate valve with hand wheel Series GA032; Length According to EN558-1R14; Body EN-GJS-500-7; Wedge EPDM rubberized; Handwheel EN-GJS-500-7; Packing NBR; Non rising stem; Medium temperature -10...+90°C; Pressure range 0...16bar; Nominal flange pressure PN10/16; DN 150mm; Length 210mm

Intrastat No.: 84818061
Country of origin: China
Weight: 35.0 Kg
Short Itemnumber: GA032150W
https://www.stasto.pl/web/image/product.template/144061/image_1920?unique=b474c66

gate valve with hand wheel series GA032; length according to EN558-1R14; body EN-GJS-500-7; wedge EPDM rubberized; handwheel EN-GJS-500-7; packing NBR; non rising stem; medium temperature -10...+90°C; pressure range 0...16bar; nominal flange pressure PN10/16; DN 150mm; length 210mm

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • DN
  • Length
  • Flange

This combination does not exist.

Availability:
Contact Us

Share

DN 150 mm
Length 210 mm
Flange PN10/16
No spare parts are available for this product.
