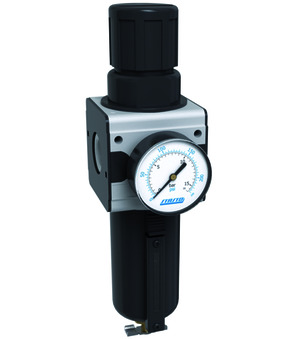

FR03-10H-0,5/10-M-YB
Filter regulator Series Modul FR03-M; Relieving; Drain valve Semi-automatic; Inlet pressure Max. 16bar; Pressure range 0,5...10bar; Metal bowl; Filter element 5µm; Connection 1"; Flow at 6bar/Δp=1bar 12000Nl/min; Filter element 5µm
Intrastat No.: 84811005
Country of origin: Germany
Weight: 2.3 Kg
Short Itemnumber: FR0310H0.510MYB
Country of origin: Germany
Weight: 2.3 Kg
Short Itemnumber: FR0310H0.510MYB
filter regulator series Modul FR03-M; relieving; drain valve semi-automatic; inlet pressure max. 16bar; pressure range 0,5...10bar; metal bowl; filter element 5µm; connection 1"; flow at 6bar/Δp=1bar 12000Nl/min; filter element 5µm
| dimension | |
|---|---|
| Connection | 1" |
| Dimension | 55 |
| design | |
| Bowl | With transparent inspection pipe |
| characteristics | |
| Flow at 6bar/Δp=1bar | 12000 Nl/min |
| Filter element | 5 µm |
No spare parts are available for this product.
