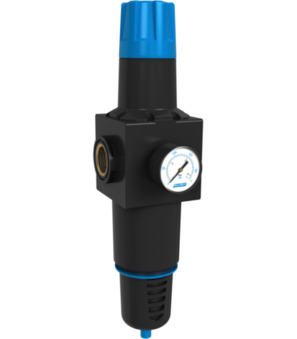

FR-10N-20-08-R-PE-SS

FR-10N-20-08-R-PE-SS

Filter regulator; Relieving; Drain valve Semi-automatic; Pressure range 0,5...8bar; Filter element 20ym; Plastic bowl with protection cage; Connection 1"NPT; Flow at 6,3bar/Δp=1bar 13800Nl/min; Max. inlet pressure 12,5bar

Intrastat No.: 84811005
Country of origin: Italy
Weight: 2.17 Kg
Short Itemnumber: FR10N2008RPESS
https://www.stasto.pl/web/image/product.template/125403/image_1920?unique=f96ddcc

filter regulator; relieving; drain valve semi-automatic; pressure range 0,5...8bar; filter element 20ym; plastic bowl with protection cage; connection 1"NPT; flow at 6,3bar/Δp=1bar 13800Nl/min; max. inlet pressure 12,5bar

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    FR-10N-20-08-R-PE-SS-X x 1.0
    FR-10N-20-08-R-PE-SS-X
    Filter regulator; Relieving; Drain valve Semi-automatic; Pressure range 0,5...8bar; Filter element 20ym; Plastic bowl with protection cage; Connection 1"NPT; Flow at 6,3bar/Δp=1bar 13800Nl/min; Max. inlet pressure 12,5bar; Without manometer
    Add to Cart
    MA001-50R-10-D-01 x 1.0
    MA001-50R-10-D-01
    Bourdon tube manometer; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 50mm; Indicating range 0-10/0-145; Unit bar/psi; Connection 1/4"NPT
