FM61-I25-PP-1000
Spezialzylinder, Kurzhubausführung
Spezialzylinder, Kurzhubausführung
cena na zapytanie
90000309
90000309
cena na zapytanie

FM61-I25-PP-1000

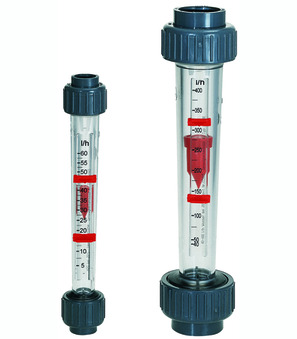

Flow meter Series FM61; Float PVDF; Pressure Max. 10bar; Mounting position Vertical pipe; Temperature range +5...+40°C; Application: Water 20°C; Connection Weld-on nozzle PP DN25; Measuring range 100...1000 l/h; Measuring tube PSU

Intrastat No.: 90268080
Country of origin: Germany
Weight: 0.52 Kg
Short Itemnumber:FM61I25PP1000
https://www.stasto.pl/web/image/product.template/239285/image_1920?unique=557efd2

Flow meter Series FM61; Float PVDF; Pressure Max. 10bar; Mounting position Vertical pipe; Temperature range +5...+40°C; Application: Water 20°C; Connection Weld-on nozzle PP DN25; Measuring range 100...1000 l/h; Measuring tube PSU

2.416,50 zł 2416.5 PLN 2.416,50 zł

cena na zapytanie

  • Connection
  • Range
  • Range 2bar/20°C
  • Range 4bar/20°C
  • Range 6bar/20°C
  • Measuring tube

This combination does not exist.

Availability:
Contact Us
dimension
Connection 1"
characteristics
Range 3...18 Nm3/h
Range 2bar/20°C 5...30 Nm3/h
Range 4bar/20°C 6...40 Nm3/h
Range 6bar/20°C 8...48 Nm3/h
Others
Measuring tube PSU
