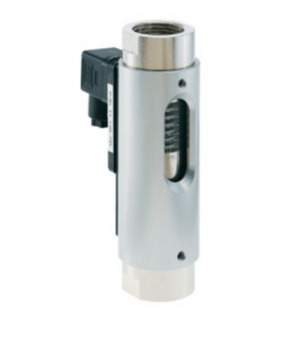

Flow monitors Series FM13-N; Viscosity compensated 32...600mm²/s; Body Nickel plated brass; Float Brass; For any mounting position; Medium temperature Max. 120°C; Oil scale; Without switching unit; Connection 1/2"; Switching range 1,3…4L/min; Maximum pressure 16bar; Length 144,5mm
Intrastat No.: 90261081
Country of origin: Germany
Weight: 0.0 Kg
Short Itemnumber: FM1312N401
Country of origin: Germany
Weight: 0.0 Kg
Short Itemnumber: FM1312N401
Scope of delivery
flow monitor with connector
flow monitors series FM13-N; viscosity compensated 32...600mm²/s; body nickel plated brass; float brass; for any mounting position; medium temperature max. 120°C; oil scale; Without switching unit; connection 1/2"; switching range 1,3…4l/min; maximum pressure 16bar; length 144,5mm
Technical specifications
| Connection | 1/2" |
|---|---|
| Switching range | 3...10 l/min |
| Maximum pressure | 10 bar |
| U max. | 250 V |
| Connection | 1/2" |
| Switching range | 3...10 l/min |
| Maximum pressure | 10 bar |
| U max. | 250 V |
| I max. | 3 A |
| Length | 144,5 mm |
No spare parts are available for this product.
