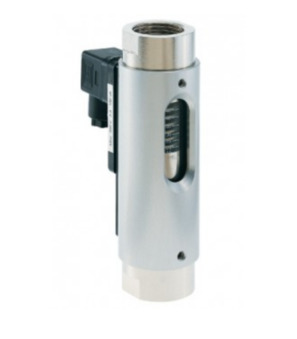

Flow monitors Series FM13-N; Viscosity compensated 32...600mm²/s; Body Nickel plated brass; Float Brass; For any mounting position; Medium temperature Max. 120°C; Oil scale; NO contact; Connection 1/2"; Switching range 3…10L/min; Maximum pressure 10bar; U max. 250V; I max. 3A; Length 144,5mm
Intrastat No.: 90261081
Country of origin: Germany
Weight: 0.89 Kg
Short Itemnumber: FM1312N10
Country of origin: Germany
Weight: 0.89 Kg
Short Itemnumber: FM1312N10
Scope of delivery
flow monitor with connector
flow monitors; body, float nickel plated brass; for any mounting position; medium temperature max. 100°C; oil scale viscosity compensated; NO contact; connection 1/2"; switching range 3…10l/min; maximum pressure 10bar; U max. 230V; max. current 3A; length 144,5mm
Technical specifications
| Connection | 1/2" |
|---|---|
| Switching range | 3...10 l/min |
| Maximum pressure | 10 bar |
| U max. | 250 V |
| Connection | 1/2" |
| Switching range | 3...10 l/min |
| Maximum pressure | 10 bar |
| U max. | 250 V |
| I max. | 3 A |
| Length | 144,5 mm |
No spare parts are available for this product.
