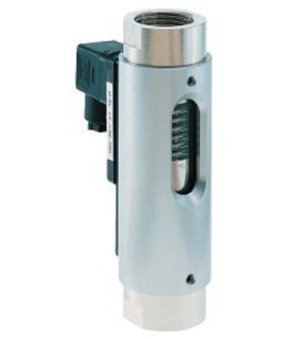

Flow monitors With Inspection glass 3/4"-15…45-10-144,5
Flow monitors With Inspection glass; Connections, Float Nickel plated brass; Body Aluminum Not wetted; For any mounting position; Medium temperature Max. 100°C; Water scale; Change-over contact For PLC; Connection 3/4"; Switching range 15…45L/min; Maximum pressure 10bar; Length 144,5mm
Intrastat No.: 90261081
Country of origin: Germany
Weight: 0.77 Kg
Short Itemnumber: FM1034N4501
Country of origin: Germany
Weight: 0.77 Kg
Short Itemnumber: FM1034N4501
Strömungswächter mit Schauglas; Anschlüsse, Schwebekörper Messing vernickelt; Gehäuse Aluminium nicht mediumsberührt; Einbaulage beliebig; Mediumstemperatur max. 100°C; Wasserskala; Wechselkontakt für SPS; Anschluss 3/4"; Schaltbereich 15…45l/min; max. Druck 10bar; Baulänge 144,5mm
No Specifications
No spare parts are available for this product.
