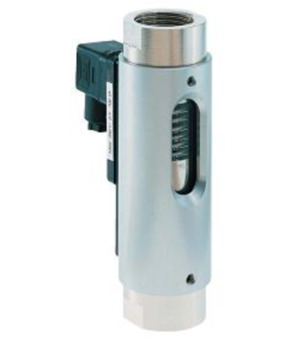

Flow monitors With Inspection glass Series FM10-W; Connections, Float Stainless steel AISI 316Ti; Body Aluminum Not wetted; For any mounting position; Medium temperature Max. 100°C; Water scale; NO contact; Connection 1/4"; Switching range 0,4...2L/min; Maximum pressure 16bar; U max. AC140/DC200V; I max. AC0,7/DC1A; Length 90mm
Country of origin: Germany
Weight: 0.13 Kg
Short Itemnumber: FM1014W2
Scope of delivery
flow monitors with inspection glass series FM10-W; connections, float stainless steel AISI 316Ti; body aluminum not wetted; for any mounting position; medium temperature max. 100°C; water scale; NO contact; connection 1/4"; switching range 0,4...2l/min; maximum pressure 16bar; U max. AC140/DC200V; I max. AC0,7/DC1A; length 90mm
Technical specifications
| Connection | 1/4" |
|---|---|
| Switching range | 0,4...2 l/min |
| Maximum pressure | 16 bar |
| U max. | AC140/DC200 V |
| Connection | 1/4" |
| Switching range | 0,4...2 l/min |
| Maximum pressure | 16 bar |
| U max. | AC140/DC200 V |
| I max. | AC0,7/DC1 A |
| Length | 90 mm |
FM10-14-W-2
Documents
Czech / Čeština
Data Sheets
1-
PDF
Datový list · Průtokový spínač s Sklíčko série FM10-W · CS
Data sheet 182 KB Updated 27/09/2026
Danish / Dansk
Data Sheets
1-
PDF
Datablad · Strømningsvagt med Inspektionsglas Serie FM10-W · DA · DK
Data sheet 189 KB Updated 27/09/2026
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Strömungswächter mit Schauglas Serie FM10-W · DE
Data sheet 189 KB Updated 27/09/2026
Greek / Ελληνικά
Data Sheets
1-
PDF
Δελτίο δεδομένων · Επιτηρητής ροής με Υαλοδείκτης στάθμης Σειρά FM10-W · EL · GR
Data sheet 195 KB Updated 27/09/2026
English
Data Sheets
1-
PDF
Data sheet · Flow monitors With Inspection glass Series FM10-W · EN
Data sheet 188 KB Updated 27/09/2026
Spanish / Español
Data Sheets
1-
PDF
Ficha técnica · Interruptor de caudal con Mirilla de inspección Serie FM10-W · ES
Data sheet 190 KB Updated 27/09/2026
Finnish / Suomi
Data Sheets
1-
PDF
Tietolehti · Virtausvahti kanssa Tarkastuslasi Sarja FM10-W · FI
Data sheet 188 KB Updated 27/09/2026
French / Français
Data Sheets
1-
PDF
Fiche technique · Détecteur de débit avec Voyant de niveau Série FM10-W · FR
Data sheet 190 KB Updated 27/09/2026
Croatian / hrvatski jezik
Data Sheets
1-
PDF
Podatkovni list · Senzor protoka s Kontrolno staklo Serija FM10-W · HR
Data sheet 189 KB Updated 27/09/2026
Hungarian / Magyar
Data Sheets
1-
PDF
Adatlap · áramlásjelzők hozzá kémlelő üveg sorozat FM10-W · HU
Data sheet 191 KB Updated 27/09/2026
Italian / Italiano
Data Sheets
1-
PDF
Scheda tecnica · Interruttore di flusso con Spia visiva Serie FM10-W · IT
Data sheet 189 KB Updated 27/09/2026
Norwegian Bokmål / Norsk bokmål
Data Sheets
1-
PDF
Datablad · Strømningsvakt med Synsglass Serie FM10-W · NB · NO
Data sheet 189 KB Updated 27/09/2026
Dutch / Nederlands
Data Sheets
1-
PDF
Datasheet · Stromingsbewaker met Kijkglas Serie FM10-W · NL
Data sheet 189 KB Updated 27/09/2026
Polish / Język polski
Data Sheets
1-
PDF
Arkusz danych · czujnik przepływu z wziernik Seria FM10-W · PL
Data sheet 190 KB Updated 27/09/2026
Romanian / română
Data Sheets
1-
PDF
Fișă de date · Monitor de debit cu Sticlă de vizitare serie FM10-W · RO
Data sheet 187 KB Updated 27/09/2026
Slovenian / slovenščina
Data Sheets
1-
PDF
Podatkovni list · Senzorji pretoka s kontrolno okence serija FM10-W · SL
Data sheet 188 KB Updated 27/09/2026
Serbian (Latin) / srpski
Data Sheets
1-
PDF
Tehnički list · indikatori protoka sa reviziono staklo serije FM10-W · SRLATIN
Data sheet 189 KB Updated 27/09/2026
Swedish / Svenska
Data Sheets
1-
PDF
Datablad · Flödesvakt med Synglas Serie FM10-W · SV
Data sheet 189 KB Updated 27/09/2026
