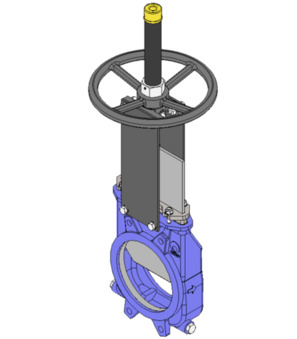

F1N1H1-5S-200-PIBD
Gate valve with double acting pneumatic actuator; Wafer type; Body Cast iron EN-GJL-250; Gate 1.4301; Metal sealing; Packing PTFE-Synthetic/EPDM With Copper Scraper; Screws Stainless steel; Nominal flange pressure PN10; Control pressure 5,5...8bar; Medium temperature -5...+90 °C; DN 200mm; Length 89mm; Pressure range 0-2bar; Scraper On Seat CA15; Prepared for 2 inductive limit switches M18
Country of origin: Spain
Weight: 35.65 Kg
Short Itemnumber: F1N1H15S200PIBD
gate valve with double acting pneumatic actuator; wafer type; body cast iron EN-GJL-250; gate AISI 304; metal sealing; packing PTFE-synthetic/EPDM with copper scraper; screws stainless steel; nominal flange pressure PN10; control pressure 5,5...8bar; medium temperature -5...+90 °C; DN 200mm; length 89mm; pressure range 0-2bar; scraper on seat CA15; prepared for 2 inductive limit switches M18
