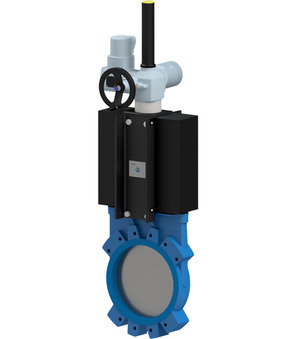

Knife gate valve with electric actuator D1EM2A2-5-B-01
Knife gate valve with electric actuator Series D1EN; Wafer type; Rising stem; Body made of carbon steel A216-WCB; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10/16/25/40; Unidirectional sealed; Voltage 400V/3/50Hz; Medium temperature -5...+90°C; DN 80mm; Length 70mm; Pressure range 0…15bar; Actuator AUMA SA07.2
Country of origin: Spain
Weight: 0.0 Kg
Short Itemnumber: D1EM2A25B01
knife gate valve with electric actuator series D1EN; wafer type; rising stem; body made of carbon steel A216-WCB; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10/16/25/40; unidirectional sealed; voltage 400V/3/50Hz; medium temperature -5...+90°C; DN 80mm; length 70mm; pressure range 0…15bar; actuator AUMA SA07.2
