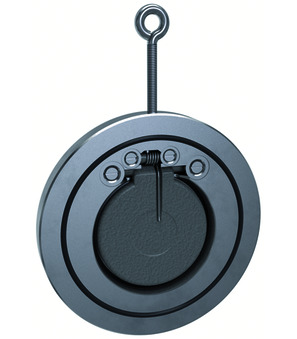

Swing check valve Series CM-6666; Wafer type; Reset by spring; Body, Disc 1.4401; DN 80mm; Length 14mm; Nominal flange pressure PN10/16/25/40; Seal Metallic; Medium temperature -50…510°C
Country of origin: Italy
Weight: 1.45 Kg
Short Itemnumber: CM6666M80
swing check valve series CM-6666; wafer type; reset by spring; body, disc AISI 316; DN 80mm; length 14mm; nominal flange pressure PN10/16/25/40; seal metallic; medium temperature -50…510°C
Technical specifications
| DN | 80 mm |
|---|---|
| Length | 14 mm |
| Flange | PN10/16/25/40 |
| Seal | Metallic |
| DN | 80 mm |
| Length | 14 mm |
| Flange | PN10/16/25/40 |
| Seal | Metallic |
| Medium temperature | -50...+510 °C |
CM-6666M-80
