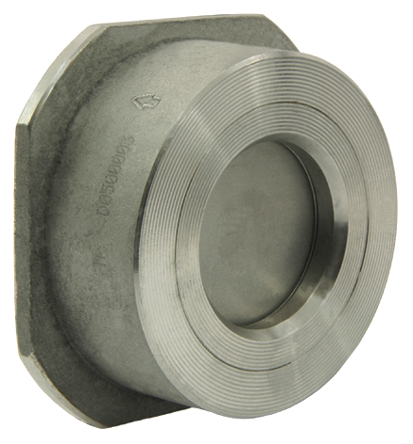

Check valve CH058-65-0,3

Check valve CH058-65-0,3

Check valve; Wafer type; Body 1.4408; Disc 1.4404; Metal sealing; Medium temperature -55...250°C; DN 65mm; Length 46mm; Nominal flange pressure 6/40; Opening pressure: 0,3bar

Intrastat No.: 84813091
Country of origin: Italy
Weight: 1.6 Kg
Short Itemnumber:CH058650.3
https://www.stasto.pl/web/image/product.template/138367/image_1920?unique=b08f7aa

check valve; wafer type; body AISI 316; disc AISI 316L; metal sealing; medium temperature -55...250°C; DN 65mm; length 46mm; nominal flange pressure 6/40; opening pressure: 0,3bar

1.892,90 zł 1892.9 PLN 1.892,90 zł

cena na zapytanie

  • DN
  • Length
  • Flange
  • Opening pressure

This combination does not exist.

Availability:
Contact Us
dimension
DN 65 mm
Length 46 mm
Flange PN6/10/16/25/40, ANSI150/300
pressure
Opening pressure 0,3 bar
No spare parts are available for this product.
