Ø 23mm; Indicating range 0...10bar; Body Plastic; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Hose connection Lateral; Class 4
Bourdon tube manometer -
Ø 40/50/63mm; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Below; Class 1,6
Bourdon tube manometer Series MA001-B -
Ø 40/50/63mm; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6
Bourdon tube manometer Series MA001-R -

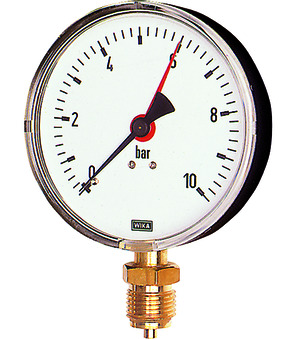

Ø 80/100mm; Body Plastic; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Below
Bourdon tube manometer -
Ø 160mm; Body Steel; Measuring unit, Motion work Copper based alloy; Front glass Flat instrument glass; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Below
Bourdon tube manometer -

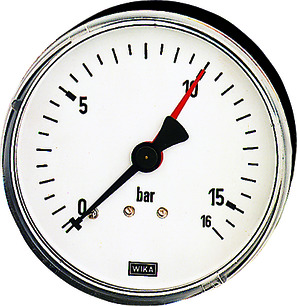

Ø 80mm; Body Plastic; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection RearBourdon tube manometer
-
Ø 100mm; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection RearBourdon tube manometer
-

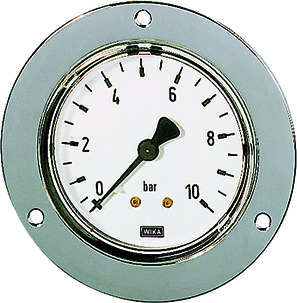

Ø 40/50/63mm; Body Sheet steel; Front ring Chromium-plated; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6
Bourdon tube manometer -
Ø 40/50/63mm; Body Sheet steel; Front ring Black; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6
Bourdon tube manometer -
Ø 40/50/63mm; Body Sheet steel, Front ring 3-square Chromium-plated; Mounting clamp; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 2,5
Bourdon tube manometer
Manometer - Standard construction
Bourdon tube manometer
Ø 23mm; Indicating range 0...10bar; Body Plastic; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Hose connection Lateral; Class 4
| Diameter | Connection | Indicating range | Unit | Class | Type | Sequence |
|---|---|---|---|---|---|---|
| 23 mm | 6 mm | 0...10 | bar | 4,0 | MV51-06-06 | 14700000 |
| 23 mm | 8 mm | 0...10 | bar | 4,0 | MV51-08-08 | 14700001 |

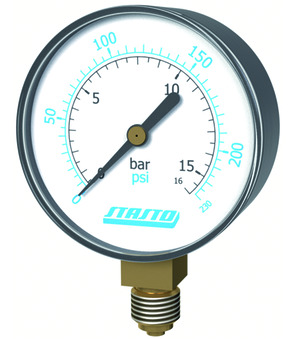

Bourdon tube manometer Series MA001-B
Ø 40/50/63mm; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Below; Class 1,6
| Diameter | Connection | Indicating range | Unit | Type | Sequence |
|---|---|---|---|---|---|
| 40 mm | 1/8" | -1...0 | bar | MA001-40B-V | 14710000 |
| 40 mm | 1/8" | 0...1,6 | bar | MA001-40B-1,6 | 14710001 |
| 40 mm | 1/8" | 0...2,5 | bar | MA001-40B-2,5 | 14710002 |
| 40 mm | 1/8" | 0...4 | bar | MA001-40B-4 | 14710003 |
| 40 mm | 1/8" | 0...6 | bar | MA001-40B-6 | 14710004 |
| 40 mm | 1/8" | 0...10/0...145 | bar/psi | MA001-40B-10-D | 14710005 |
| 40 mm | 1/8" | 0...16 | bar | MA001-40B-16 | 14710006 |
| 40 mm | 1/8" | 0...25 | bar | MA001-40B-25 | 14710007 |
| 40 mm | 1/8" | 0...40 | bar | MA001-40B-40 | 14710008 |
| 40 mm | 1/8" | 0...60 | bar | MA001-40B-60 | 14710009 |
| 50 mm | 1/4" | -1...0 | bar | MA001-50B-V | 14710010 |
| 50 mm | 1/4" | -1...+1,5 | bar | MA001-50B-V1,5 | 14710011 |
| 50 mm | 1/4" | 0...1 | bar | MA001-50B-1 | 14710012 |
| 50 mm | 1/4" | 0...1,6 | bar | MA001-50B-1,6 | 14710013 |
| 50 mm | 1/4" | 0...2,5 | bar | MA001-50B-2,5 | 14710014 |
| 50 mm | 1/4" | 0...4 | bar | MA001-50B-4 | 14710015 |
| 50 mm | 1/4" | 0...6 | bar | MA001-50B-6 | 14710016 |
| 50 mm | 1/4" | 0...10/0...145 | bar/psi | MA001-50B-10-D | 14710017 |
