Valves, butterfly valves and gate valves - manually operated

List prices PL
DN Length Type Sequence
300 mm 78 mm BUW6-300-SSES-L-3C 28580021
350 mm 78 mm BUW6-350-SSES-G-3C 28580022
450 mm 114 mm BUW6-450-SSES-G-3C 28580023

Butterfly valve with manual gear box Series BUW6-SSES-G

Wafer type; Length According to EN558−1R20; Body, Disc And Shaft 1.4408; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -35...+130°C; Pressure range 0...16bar
To Series: Butterfly valve with manual gear box Series BUW6-SSES-G
Grundversion
DN Length Type Sequence
200 mm 60 mm BUW6-200-SSES-G 28590000
250 mm 68 mm BUW6-250-SSES-G 28590001
300 mm 78 mm BUW6-300-SSES-G 28590002
400 mm 102 mm BUW6-400-SSES-G 28590003
BUW6-040-DSE-B-S
Butterfly valve with bare shaft Series BUW6-DSE-B-S; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; Silicone-free; DN 40mm; Length 33mm
To Series: Butterfly valve with bare shaft Series BUW6-DSE-B-S
DN Length Type
40 mm 33 mm BUW6-040-DSE-B-S
BUW6-040-DSE-L-S

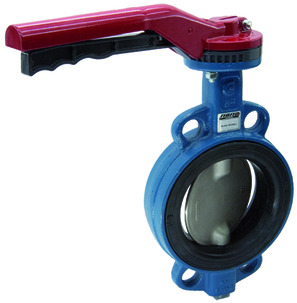

Butterfly valve with hand lever Series BUW6-DSE-L-S; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; Silicone-free; DN 40mm; Length 33mm
To Series: Butterfly valve with hand lever Series BUW6-DSE-L-S
DN Length Type
40 mm 33 mm BUW6-040-DSE-L-S

Knife gate valves with single acting pneumatic actuator NO Series A1S0

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 inductive limit switches M18
To Series: Knife gate valves with single acting pneumatic actuator NO Series A1S0
Grundversion
DN Length Pressure range Type Sequence
200 mm 60 mm 0...8 bar A1S02H2-5-200-PIB 28630000
200 mm 60 mm 0...8 bar A1S02I3-5V-250-PI 28630001

Liner

Suitable for Butterfly valves Series BUW4/BULD-PTFE

To Series: Liner
Grundversion
DN Material Type Sequence
50 mm PTFE LIBU-050-T 28640000
65 mm PTFE LIBU-065-T 28640001
80 mm PTFE LIBU-080-T 28640002
100 mm PTFE LIBU-100-T 28640003
125 mm PTFE LIBU-125-T 28640004
150 mm PTFE LIBU-150-T 28640005
200 mm PTFE LIBU-200-T 28640006
250 mm PTFE LIBU-250-T 28640007
300 mm PTFE LIBU-300-T 28640008
