Valves, butterfly valves and gate valves - manually operated

List prices PL
BUW6-200-CSE-B
butterfly valve with bare shaft series BUW6-CSE-B; wafer type; length according to EN558−1R20; body carbon steel A216-WCB; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...16bar; DN 200mm; length 60mm
C3J-BUW6-200-CSE
Inspection certificate EN-10204-3.1; For material, pressure and tightness
BUW6-200-CSE-B-3C
butterfly valve with bare shaft series BUW6-CSE-B-3C; wafer type; length according to EN558−1R20; body carbon steel A216-WCB epoxy coated, disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...16bar; DN 200mm; length 60mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
BUW6-200-CSE-L-3C

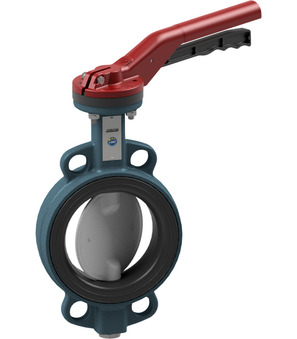

butterfly valve with hand lever series BUW6-CSE-L-3C; wafer type; length according to EN558−1 R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; nominal flange pressure PN10/16/ANSI150; pressure range 0...16bar; DN 200mm; length 60mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
BUA5-065-DSED-L
butterfly valve with hand lever series BUA5-DSE-L; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 420; liner EPDM; nominal flange pressure PN6/10/16/ANSI150; medium temperature -20...+90°C; pressure range 0...16bar; DN 65mm; length 46mm
BUA5-050-DSED-L
butterfly valve with hand lever series BUA5-DSE-L; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 420; liner EPDM; nominal flange pressure PN6/10/16/ANSI150; medium temperature -20...+90°C; pressure range 0...16bar; DN 50mm; length 43mm
BUA5-080-DSED-L
butterfly valve with hand lever series BUA5-DSED-L; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 420; liner EPDM; nominal flange pressure PN6/10/16/ANSI150; medium temperature -20...+90°C; pressure range 0...16bar; DN 80mm; length 46mm
BUA5-100-DSED-L
butterfly valve with hand lever series BUA5-DSED-L; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 420; liner EPDM; nominal flange pressure PN6/10/16/ANSI150; medium temperature -20...+90°C; pressure range 0...16bar; DN 100mm; length 52mm
BUA5-125-DSED-L
butterfly valve with hand lever series BUA5-DSED-L; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 420; liner EPDM; nominal flange pressure PN6/10/16/ANSI150; medium temperature -20...+90°C; pressure range 0...16bar; DN 125mm; length 56mm
BUA5-150-DSED-L
butterfly valve with hand lever series BUA6-DSE1-L; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 420; liner EPDM with DVGW drinking water approval; nominal flange pressure PN6/10/16/ANSI150; medium temperature -20...+90°C; pressure range 0...16bar; DN 150mm; length 56mm
BUA5-200-DSED-L
butterfly valve with hand lever series BUA5-DSED-L; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 420; liner EPDM; nominal flange pressure PN6/10/16/ANSI150; medium temperature -20...+90°C; pressure range 0...16bar; DN 200mm; length 60mm
C3J-GL120-200
Inspection certificate EN-10204-3.1; For material, pressure and tightness
41A-080-21111
rubber-compensator; flanged type PN10/16; material rubber NBR, flange zinc plated steel; temperature range -10...+80°C; DN 80mm; pressure range 0...10bar; pressure range
41A-100-21111
rubber-compensator; flanged type PN10/16; material rubber NBR, flange zinc plated steel; temperature range -10...+80°C; DN 100mm; pressure range 0...10bar; pressure range
BULC-400-DSXZ-B
Butterfly valve with bare shaft Series BULC-DSXZ-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner EPDM-HT Peroxide cross-linked; Medium temperature -10...+150°C; DN 400mm; Length 102mm; Pressure range 0…10bar; Nominal flange pressure PN10
C3J-GL009-112-W
Inspection certificate EN-10204-3.1; For material, pressure and tightness (Steel/Stainless steel)
CSB-GL009-112-W
Stamp costs
GB02-16/36-01
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 2000Nm; Flange ISO5211 F16; Female square 36mm
BULA-200-DSE-G-01
Butterfly valve with manual gear box Series BULA-G-01; Lug type; Incl. padlock; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 200mm; Pressure range 0…16bar; Nominal flange pressure PN16bar
BUW6-050-DSE-B-S
Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner EPDM; Medium temperature -10...+130°C; Silicone-free; DN 50mm; Length 43mm; Pressure range 0…16bar; Flange PN10/16/ANSI150
