Valves, butterfly valves and gate valves - manually operated

Butterfly valve with hand lever Series BUWV-DSV-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 150mm; Length 56mm; Pressure range 0…25bar; Nominal flange pressure PN25

BULY-150-DSE-B-05

Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated RAL5009 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 150mm; Length 56mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC; Stainless steel nameplate; Stainless steel screws

BULY-150-DSE-L-05

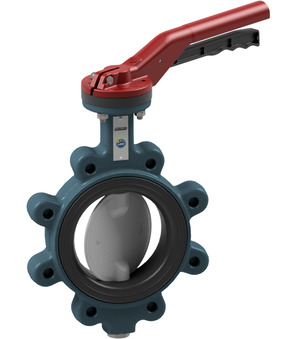

Butterfly valve with hand lever; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated RAL5009 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 150mm; Length 56mm; Pressure range 0-16bar; Nominal flange pressure ANSI150; Flange thread UNC; Stainless steel nameplate; Stainless steel screws

BULY-125-DSE-B-06

Butterfly valve with bare shaft; Series BUL-B-06; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated RAL5009 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 125mm; Length 56mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC; Stainless steel nameplate; Stainless steel screws

BULY-125-DSE-L-06

Butterfly valve with hand lever; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated RAL5009 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 125mm; Length 56mm; Pressure range 0-16bar; Nominal flange pressure ANSI150; Flange thread UNC; Stainless steel nameplate; Stainless steel screws

C3J-BULY-080-DSE-05

inspection certificate EN-10204-3.1; for material, pressure and tightness

BULY-080-DSE-B-3C05

Butterfly valve with bare shaft Series BULY-B-3C05; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated RAL5009 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 80mm; Length 46mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC; Stainless steel nameplate; Stainless steel screws; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

BULY-080-DSE-B-05

Butterfly valve with bare shaft Series BULY-B-05; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated RAL5009 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 80mm; Length 46mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC; Stainless steel nameplate; Stainless steel screws

BULG-125-DPV-L

butterfly valve with hand lever series BULG-L, BULC-L; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; shaft AISI 430; liner FKM; medium temperature -20...+200°C; DN 125mm; length 56mm; pressure range 0-16bar; flange PN10/16; disc GGG40 verzinkt

BULG-125-DPV-L-MS-1MC07-PIZ001

BULG-125-DPV-L
butterfly valve with hand lever series BULG-L, BULC-L; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; shaft AISI 430; liner FKM; medium temperature -20...+200°C; DN 125mm; length 56mm; pressure range 0-16bar; flange PN10/16; disc GGG40 verzinkt
MS-1MC07-PIZ001
mounting bracket with 1 mechanical limit switch; NC/NO contact; for butterfly valve with hand lever DN40-DN300; F10/F07; mounted

BDH2-300-S-003-EP0S10PZZ

BDH2-300-S-003
ring-butterfly damper with pneumatic actuator DN300, PN10; body cast iron EN-GJL-250Cr; disc 1.5415 according to DIN EN 10028-2; shaft AISI 304 according to DIN EN 10088-3; packing gland adjustable graphite sealing cord; mounting bracket zinc plated steel; 180mm height; temperature range max. 550°C; operating pressure max. 200mbar; leakage rate 1%; length 45mm; actuator single acting PAS1605; control pressure 5,5-8bar
EP0S10PZZ
mounted positioner; digitaler I/P-Stellungsregler, 4-20 mA; actuator PAS052-270; position feedback 4-20mA

BULG-150-DSV-L-MS-1MC07-PIZ001

BULG-150-DSV-B
butterfly valve with bare shaft series BUL-DSV-B; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; medium temperature -10...+200°C; DN 150mm; length 56mm; pressure range 0...16bar; nominal flange pressure 10/16
HLBU-125150-A
hand lever; material aluminum; suitable for series BUW6, BUW2, BUW4, BULG and BULC; DN 125;150mm
MS-1MC07-PIZ001
mounting bracket with 1 mechanical limit switch; NC/NO contact; for butterfly valve with hand lever DN40-DN300; F10/F07; mounted

BULY-200-DSE-B-3C02

Butterfly valve with bare shaft Series BULY-DSE-B-3C02; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated RAL5009 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC; Stainless steel nameplate; Stainless steel screws; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

BULY-200-DSE-B-02

Butterfly valve with bare shaft Series BULY-DSE-B-02; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated RAL5009 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC; Stainless steel nameplate; Stainless steel screws

BULY-200-DSE-L-3C01

butterfly valve with hand lever series BULY-DSE-L-3C01; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 200mm; length 60mm; pressure range 0-16bar; nominal flange pressure ANSI150; flange thread UNC; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

C3J-BULY-080-SSES

inspection certificate EN-10204-3.1; for material, pressure and tightness

C3J-BULY-080-SSES-01

inspection certificate EN-10204-3.1; for material, pressure and tightness

UB1VN2D5-5N-200-PIB

gate valve with handwheel; wafer type; non rising stem; body ductile iron EN-GJS-500-7; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/NBR; screws stainless steel; nominal flange pressure PN10; sealed in both directions; medium temperature -5...+90 °C; DN 200mm; length 60mm; pressure range 0-10bar; prepared for 2 inductive switches MSU03, MSU04, MSU05

UB1VN2D5-5N-150-PIB

gate valve with handwheel; wafer type; non rising stem; body ductile iron EN-GJS-500-7; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/NBR; screws stainless steel; nominal flange pressure PN10; sealed in both directions; medium temperature -5...+90 °C; DN 150mm; length 56mm; pressure range 0-10bar; prepared for 2 inductive switches MSU03, MSU04, MSU05

UB1P2D5-5N-125-PIB

knife gate valves with lever; wafer type; body ductile iron EN-GJS-500-7; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/NBR; screws stainless steel; nominal flange pressure PN10; sealed in both directions; medium temperature -5...+90 °C; DN 125mm; length 56mm; pressure range 0-10bar; prepared for 2 inductive switches MSU03, MSU04, MSU05
