Valves, butterfly valves and gate valves - manually operated

List prices PL
BUW4-150-DZTS-G
Butterfly valve with manual gearbox; Intermediate flange design; Overall length according to EN558−1 R20; Housing GGG40 epoxy-coated; Disc 1.4542 PTFE-coated; Shaft 1.4408; Cuff PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Print area 0...10bar; DN 150mm; Installation length 56mm
LP-A1VN2H2-5-150-B01
Knife gate valve without handwheel; Intermediate flange design; Non-rising spindle; Housing GGG50; Slider plate AISI 316L; soft-sealing EPDM; Pack PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealing on one side; Medium temperature -5...+90 °C; DN 150mm; Installation length 60mm; Pressure range 0...10bar; ATEX Zone 1 and 21

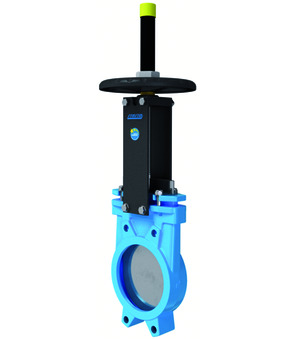

K1V2DI2-N-65-B-01
Knife gate valve with handwheel Series K1V2DI2-N; Wafer type; Rising stem; Body Ductile iron EN-GJS-500-7; Gate 1.4404; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90°C; DN 65mm; Length 40mm; Pressure range 0...10bar
BUW2-200-DSC-L-A
butterfly valve with hand lever series BUW2-DSC-L-A; ATEX II 2 G/D Ex h X; wafer type; length according to EN558−1R20; for abrasive medias (e.g. sand, cement, etc.); body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner carboxylated NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...6bar; DN 200mm; length 60mm
BUW2-150-DSC-L-A
butterfly valve with hand lever series BUW2-DSC-L-A; ATEX II 2 G/D Ex h X; wafer type; length according to EN558−1R20; for abrasive medias (e.g. sand, cement, etc.); body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner carboxylated NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...6bar; DN 150mm; length 56mm
BUW6-050-DS1P1-B
butterfly valve with bare shaft series BUW6-DS1P1-B; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316 chenisil coated; shaft AISI 430; liner polyurethane; medium temperature -10...+90°C; DN 50mm; length 43mm; pressure range 0…16bar; nominal flange pressure PN10/16/ANSI150
BUW6-050-DS1P1-B-A
butterfly valve with bare shaft series BUW6-DS1P1-B-A; ATEX II 2GD Ex h X; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316 chenisil coated; shaft AISI 430; liner polyurethane; medium temperature -10...+90°C; DN 50mm; length 43mm; pressure range 0…16bar; nominal flange pressure PN10/16/ANSI150

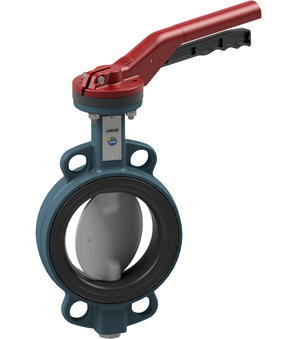

BUW6-050-DS1P1-L
Butterfly valve with hand lever Series BUW6-DS1P1-L; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408 chenisil Coated; Shaft 1.4016; Liner Polyurethane; Medium temperature -10...+90°C; DN 50mm; Length 43mm; Pressure range 0…16bar; Nominal flange pressure PN10/16/ANSI150
BUW6-065-DS1P1-B
butterfly valve with bare shaft series BUW6-DS1P1-B; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316 chenisil coated; shaft AISI 430; liner polyurethane; medium temperature -10...+90°C; DN 65mm; length 46mm; pressure range 0…16bar; nominal flange pressure PN10/16/ANSI150
BUW6-080-DS1P1-B
butterfly valve with bare shaft series BUW6-DS1P1-B; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316 chenisil coated; shaft AISI 430; liner polyurethane; medium temperature -10...+90°C; DN 80mm; length 46mm; pressure range 0…16bar; nominal flange pressure PN10/16/ANSI150
C3J-BULY-150-DSE-05
inspection certificate EN-10204-3.1; for material, pressure and tightness
BULY-150-DSE-B-3C05
Butterfly valve with bare shaft; Series BUL-B-3C05; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated RAL5009 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 150mm; Length 56mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC; Stainless steel nameplate; Stainless steel screws; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
BULY-150-DSE-L-3C05
Butterfly valve with hand lever Series BUL-L-3C05; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated RAL5009 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 150mm; Length 56mm; Pressure range 0-16bar; Nominal flange pressure ANSI150; Flange thread UNC; Stainless steel nameplate; Stainless steel screws; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
C3J-BULY-100-DSE-05
inspection certificate EN-10204-3.1; for material, pressure and tightness
BULY-100-DSE-B-3C05
Butterfly valve with bare shaft; Series BUL-B-3C05; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated RAL5009 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 100mm; Length 52mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC; Stainless steel nameplate; Stainless steel screws; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
BULY-100-DSE-L-3C05
Butterfly valve with hand lever Series BUL-L-3C05; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated RAL5009 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 100mm; Length 52mm; Pressure range 0-16bar; Nominal flange pressure ANSI150; Flange thread UNC; Stainless steel nameplate; Stainless steel screws; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
BULY-125-DSE-B-3C06
Butterfly valve with bare shaft; Series BUL-B-3C06; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated RAL5009 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 125mm; Length 56mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC; Stainless steel nameplate; Stainless steel screws; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
C3J-BULY-125-DSE-06
Inspection certificate EN-10204-3.1; For material, pressure and tightness
BULY-125-DSE-L-3C06
Butterfly valve with hand lever Series BUL-L-3C06; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated RAL5009 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 125mm; Length 56mm; Pressure range 0-16bar; Nominal flange pressure ANSI150; Flange thread UNC; Stainless steel nameplate; Stainless steel screws; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
AB1VN2H2-5-200-BK
knife gate valve with handwheel series AB1V; non rising stem; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; Stainless steel mudguards;; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; DN 200mm; length 60mm; pressure range 0...10bar
