Valves, butterfly valves and gate valves - manually operated

List prices PL

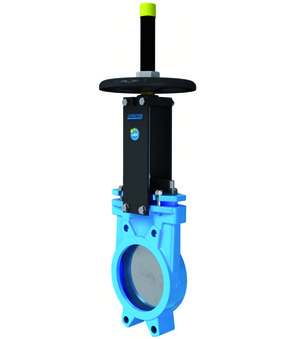

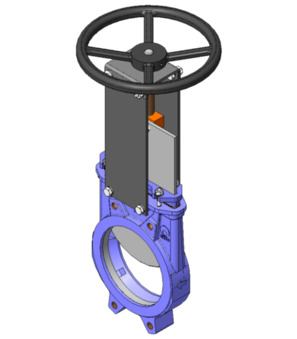

A1VN2H4-6-125-B
Knife gate valve with handwheel; Wafer type; Non rising stem; Body Cast iron EN-GJL-250; Gate 1.4301; Soft sealed PTFE; Packing Graphite; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; DN 125mm; Length 50mm; Pressure range 0-10bar
A1VN2H5-5-125-B
Knife gate valve wafer type DN125 PN10, body GG25, gate plate 1.4301 seat seal NBR, packing synth. PTFE/EPDM handwheel with non-rising stem bolts in stainless steel
A1VN2H5-5-80-B
Gate valve with handwheel; Wafer type; Non rising stem; Body Cast iron EN-GJL-250; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90 °C; DN 80mm; Length 50mm; Pressure range 0-10bar
A1VN2H5-5M-200-B-01
Knife gate valve with handwheel; Wafer type; Non rising stem; Body Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic/NBR; Scraper; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -20...+90°C; DN 200mm; Length 60mm; Pressure range 0-10bar
A1VN2H5-5M-80-B-01
Knife gate valve with handwheel; Wafer type; Non rising stem; Body Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic/NBR; Scraper; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -20...+90°C; DN 80mm; Length 50mm; Pressure range 0...10bar
A1VN2H5-5N-150
Knife gate valve with handwheel; Wafer type; Non rising stem; Body Cast iron EN-GJL-250; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic/NBR; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90 °C; DN 150mm; Length 60mm; Pressure range 0-10bar
A1VN2H5-5N-200
Knife gate valve with handwheel; Wafer type; Non rising stem; Body Cast iron EN-GJL-250; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic/NBR; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90 °C; DN 200mm; Length 60mm; Pressure range 0-8bar
A1VN2HS2-5S-100-B
Knife gate valve with handwheel; Wafer type; Non rising stem; Body Cast iron EN-GJL-250; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM With Copper Scraper; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90 °C; DN 100mm; Length 50mm; Pressure range 0-10bar
A1VN2HS2-5S-150-B
Knife gate valve with handwheel; Wafer type; Non rising stem; Body Cast iron EN-GJL-250; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM With Copper Scraper; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90 °C; DN 150mm; Length 60mm; Pressure range 0-10bar
A1VN2HS2-5S-300-B
Knife gate valve with handwheel; Wafer type; Non rising stem; Body Cast iron EN-GJL-250; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM With Copper Scraper; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90 °C; DN 300mm; Length 70mm; Pressure range 0-6bar
A1VN2I2-5-100
Knife gate valve with handwheel; Wafer type; Non rising stem; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90 °C; DN 100mm; Length 50mm; Pressure range 0-10bar
A1VN2I2-5-100-PM
Knife gate valve with handwheel, wafer type, non-rising stem, body 1.4408, gate plate 1.4401, soft-seated EPDM, packing PTFE-synthetic/EPDM flange nominal pressure PN10, sealing on one side, medium temperature -5...+90 °C, DN 100mm, face-to-face length 50mm, pressure range 0-10bar, prepared for 2 mechanical limit switches MSU01
A1VN2I2-5-150
Knife gate valve with handwheel; Wafer type; Non rising stem; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90°C; DN 150mm; Length 60mm; Pressure range 0-10bar
A1VN2I2-5-200
Knife gate valve with handwheel; Wafer type; Non rising stem; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90°C; DN 200mm; Length 60mm; Pressure range 0-10bar
BULC-300-CSN-B-01-3C
Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; Body made of carbon steel A216-WCB; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10; Medium temperature -10...+100°C; Pressure range 0...10bar; DN 300mm; Length 78mm; Coating C5M; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
BULC-300-CSN-B-3F01
Butterfly valve with bare shaft; Lug type; Length According to EN558−1R20; Body Carbon steel Coating process According to ISO 12944; Corrosivity category C5M; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 300mm; Length 78mm; Pressure range 0…10bar; Nominal flange pressure PN10; Length 78mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Incl. Painting certificate; RAL8001

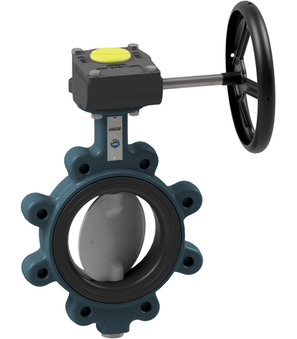

BULC-300-CSRQ-G-3F01
Butterfly valve with manual gear box AB550; Handwheel Colour Black; Incl. Unlocking safety device And Visual indication; Lug type; Length According to EN558−1R20; Body Carbon steel A216-WCB; Disc 1.4408; Shaft 1.4542; Seat RTFE; Nominal flange pressure PN10; Medium temperature -10...+230°C; Pressure range 0...10bar; DN 300mm; Length 78mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Incl. Painting certificate; Coating With anti-corrosion effect According to INTERZINC 22 RAL GREY
BULC-300-DSN-B-01-3C
Butterfly valve with bare shaft; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 300mm; Length 78mm; Pressure range 0…10bar; Nominal flange pressure PN10; Coating C5M; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
BULC-300-DSN-G-01-3C
Butterfly valve with manual gear box; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10; Medium temperature -10...+100°C; Pressure range 0...10bar; DN 300mm; Length 78mm; Coating C5M; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
BULC-300-DSN-G-3F01
Butterfly valve with manual gear box AB550; Handwheel Colour Black; Incl. Unlocking safety device And Visual indication; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Coating process According to ISO 12944; Corrosivity category C5M; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 300mm; Length 78mm; Pressure range 0…10bar; Nominal flange pressure PN10; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Incl. Painting certificate; RAL6010
