2/2-way solenoid valves - pilot operated

List prices PL
21X2KV120-BDA08110CS-C003-31-CV20-6
21X2KV120
2/2-way solenoid valve Series 21X; Pilot-operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 12mm; Pressure AC/DC 0,1-20bar; Length 72mm
BDA08110CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 110VDC
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21X
Female thread DN Length Pressure DC Pressure AC/DC Seal Medium temperature Voltage Voltage type Design Approval Type
G 1/2" 12 mm 72 mm 0,1...20 bar 0,1...20 bar FKM -10...+120 °C 110VDC DC With moulded PVC-cable (2 m) CE 21X2KV120-BDA08110CS-C003-31-CV20-6
21WA4K0B130-BDV08230AY-C003-32-6
21WA4K0B130
2/2-way solenoid valve Series 21W, 21WA; Pilot-operated; NC; Body Brass; Tube Stainless steel One-piece; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 13mm; Pressure AC/DC 0,2-16bar; Length 66mm
BDV08230AY
Coil Type BDV; For humid area; Approval CSA/UL/VDE; Connector size 32mm; Voltage 230V/50Hz, 240V/60Hz
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21W, 21WA
Female thread DN Length Design Voltage Voltage type Pressure AC/DC Seal Medium temperature Approval Type
G 1/2" 13 mm 66 mm Standard 230V/50Hz-240V/60Hz AC 0,2...16 bar NBR -10...+90 °C UL/CSA/VDE 21WA4K0B130-BDV08230AY-C003-32-6
21X2KV120-BDA08110CS-C003-32-LV-1
21X2KV120
2/2-way solenoid valve Series 21X; Pilot-operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 12mm; Pressure AC/DC 0,1-20bar; Length 72mm
BDA08110CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 110VDC
C003-32-LV-1
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC
To Series: 2/2-way solenoid valve Series 21X
Female thread DN Length Pressure DC Pressure AC/DC Seal Medium temperature Voltage Voltage type Design Approval Type
G 1/2" 12 mm 72 mm 0,1...20 bar 0,1...20 bar FKM -10...+120 °C 110VDC DC With integrated LED-yellow and VDR CE 21X2KV120-BDA08110CS-C003-32-LV-1

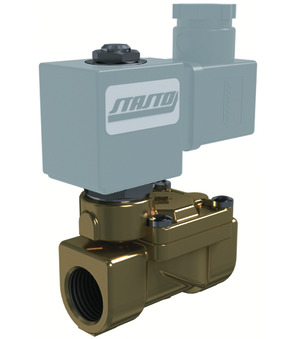

2/2-way solenoid valve Series 21W, 21WA

2/2-way solenoid valve Series 21W, 21WA

Pilot-operated; NC; Body Brass; Tube Stainless steel One-piece; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm

2/2-Wege-Magnetventil Serie 21W, 21WA 2/2-Wege-Magnetventil Serie 21W, 21WA
To Series: 2/2-way solenoid valve Series 21W, 21WA
Varianten
Female thread DN Length Design Voltage Voltage type Pressure AC/DC Seal Medium temperature Approval Type Sequence
G 1/2" 13 mm 66 mm Standard 220-230V/50-60Hz AC 0,2...16 bar NBR -10...+90 °C CE 21WA4K0B130-BDA08223DS-C003-32-6 20120016
G 1/2" 13 mm 66 mm ATEX - - 0,2...16 bar NBR -10...+90 °C - 21WA4K0B130-Y224VDC-2 20120017
21X2KV120-BDA08110DS-C003-32-6
21X2KV120
2/2-way solenoid valve Series 21X; Pilot-operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 12mm; Pressure AC/DC 0,1-20bar; Length 72mm
BDA08110DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 110V/50-60Hz
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21X
Female thread DN Length Pressure DC Pressure AC/DC Seal Medium temperature Voltage Voltage type Design Approval Type
G 1/2" 12 mm 72 mm 0,1...20 bar 0,1...20 bar FKM -10...+120 °C 110V/50-60Hz AC Standard CE 21X2KV120-BDA08110DS-C003-32-6
21WA4K0B130-Y1220-240V/50-60HZ-2
21WA4K0B130
2/2-way solenoid valve Series 21W, 21WA; Pilot-operated; NC; Body Brass; Tube Stainless steel One-piece; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 13mm; Pressure AC/DC 0,2-16bar; Length 66mm
Y1220-240V/50-60HZ-2
Mounted coil; Type Y1, ATEX- II 2G Exmb IIC T4/ II 2D Exmb tb IIIC T130°C; Cable length 3m; Voltage 220-240V/50-60Hz; Medium temperature Max. 80°C
To Series: 2/2-way solenoid valve Series 21W, 21WA
Female thread DN Length Design Voltage Voltage type Pressure AC/DC Seal Medium temperature Approval Type
G 1/2" 13 mm 66 mm ATEX - - 0,2...16 bar NBR -10...+90 °C - 21WA4K0B130-Y1220-240V/50-60HZ-2

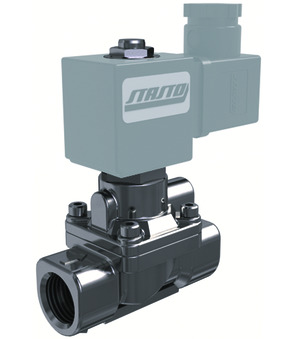

2/2-way solenoid valve Series 21X

2/2-way solenoid valve Series 21X

Pilot-operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm

2/2-Wege-Magnetventil Serie 21X 2/2-Wege-Magnetventil Serie 21X
To Series: 2/2-way solenoid valve Series 21X
Varianten
Female thread DN Length Pressure DC Pressure AC/DC Seal Medium temperature Voltage Voltage type Design Approval Type Sequence
G 1/2" 12 mm 72 mm 0,1...20 bar 0,1...20 bar FKM -10...+120 °C 110V/50-60Hz AC With moulded PVC-cable (2 m) CE 21X2KV120-BDA08110DS-C003-31-CV20-6 20120018
G 1/2" 12 mm 72 mm 0,1...20 bar 0,1...20 bar FKM -10...+120 °C 110V/50-60Hz AC With integrated LED-yellow and VDR CE 21X2KV120-BDA08110DS-C003-32-LV-1 20120019
2/2-way solenoid valve Series 21W, 21WA

2/2-way solenoid valve Series 21W, 21WA

Pilot-operated; NC; Body Brass; Tube Stainless steel One-piece; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm

2/2-Wege-Magnetventil Serie 21W, 21WA 2/2-Wege-Magnetventil Serie 21W, 21WA
To Series: 2/2-way solenoid valve Series 21W, 21WA
Varianten
Female thread DN Length Design Voltage Voltage type Pressure AC/DC Seal Medium temperature Approval Type Sequence
G 1/2" 13 mm 66 mm With moulded PVC-cable (2 m) 12VDC DC 0,2...16 bar NBR -10...+90 °C CE 21WA4K0B130-BDA08012CS-C003-31-CV20-6 20120019
G 1/2" 13 mm 66 mm With moulded PVC-cable (2 m) 24VDC DC 0,2...16 bar NBR -10...+90 °C CE 21WA4K0B130-BDA08024CS-C003-31-CV20-6 20120020
21X2KV120-BDA08223DS-C003-32-6
21X2KV120
2/2-way solenoid valve Series 21X; Pilot-operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 12mm; Pressure AC/DC 0,1-20bar; Length 72mm
BDA08223DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 220-230V/50-60Hz
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21X
Female thread DN Length Pressure DC Pressure AC/DC Seal Medium temperature Voltage Voltage type Design Approval Type
G 1/2" 12 mm 72 mm 0,1...20 bar 0,1...20 bar FKM -10...+120 °C 220-230V/50-60Hz AC Standard CE 21X2KV120-BDA08223DS-C003-32-6
21WA4K0B130-BDA08024DS-C003-31-CV20-6
21WA4K0B130
2/2-way solenoid valve Series 21W, 21WA; Pilot-operated; NC; Body Brass; Tube Stainless steel One-piece; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 13mm; Pressure AC/DC 0,2-16bar; Length 66mm
BDA08024DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 24V/50-60Hz
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21W, 21WA
Female thread DN Length Design Voltage Voltage type Pressure AC/DC Seal Medium temperature Approval Type
G 1/2" 13 mm 66 mm With moulded PVC-cable (2 m) 24V/50-60Hz AC 0,2...16 bar NBR -10...+90 °C CE 21WA4K0B130-BDA08024DS-C003-31-CV20-6
21X2KV120-BDA08223DS-C003-31-CV20-6
21X2KV120
2/2-way solenoid valve Series 21X; Pilot-operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 12mm; Pressure AC/DC 0,1-20bar; Length 72mm
BDA08223DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 220-230V/50-60Hz
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21X
Female thread DN Length Pressure DC Pressure AC/DC Seal Medium temperature Voltage Voltage type Design Approval Type
G 1/2" 12 mm 72 mm 0,1...20 bar 0,1...20 bar FKM -10...+120 °C 220-230V/50-60Hz AC With moulded PVC-cable (2 m) CE 21X2KV120-BDA08223DS-C003-31-CV20-6
21WA4K0B130-BDA08042AS-C003-31-CV20-6
21WA4K0B130
2/2-way solenoid valve Series 21W, 21WA; Pilot-operated; NC; Body Brass; Tube Stainless steel One-piece; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 13mm; Pressure AC/DC 0,2-16bar; Length 66mm
BDA08042AS
Coil Type BDA; Standard; Connector size 32mm; Voltage 42V/50Hz
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21W, 21WA
Female thread DN Length Design Voltage Voltage type Pressure AC/DC Seal Medium temperature Approval Type
G 1/2" 13 mm 66 mm With moulded PVC-cable (2 m) 42V/50Hz AC 0,2...16 bar NBR -10...+90 °C CE 21WA4K0B130-BDA08042AS-C003-31-CV20-6
21X2KV120-BDA08223DS-C003-32-LV-1
21X2KV120
2/2-way solenoid valve Series 21X; Pilot-operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 12mm; Pressure AC/DC 0,1-20bar; Length 72mm
BDA08223DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 220-230V/50-60Hz
C003-32-LV-1
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC
To Series: 2/2-way solenoid valve Series 21X
Female thread DN Length Pressure DC Pressure AC/DC Seal Medium temperature Voltage Voltage type Design Approval Type
G 1/2" 12 mm 72 mm 0,1...20 bar 0,1...20 bar FKM -10...+120 °C 220-230V/50-60Hz AC With integrated LED-yellow and VDR CE 21X2KV120-BDA08223DS-C003-32-LV-1
2/2-way solenoid valve Series 21W, 21WA

2/2-way solenoid valve Series 21W, 21WA

Pilot-operated; NC; Body Brass; Tube Stainless steel One-piece; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm

2/2-Wege-Magnetventil Serie 21W, 21WA 2/2-Wege-Magnetventil Serie 21W, 21WA
To Series: 2/2-way solenoid valve Series 21W, 21WA
Varianten
Female thread DN Length Design Voltage Voltage type Pressure AC/DC Seal Medium temperature Approval Type Sequence
G 1/2" 13 mm 66 mm With moulded PVC-cable (2 m) 48V/50Hz AC 0,2...16 bar NBR -10...+90 °C CE 21WA4K0B130-BDA08048AS-C003-31-CV20-6 20120023
G 1/2" 13 mm 66 mm With moulded PVC-cable (2 m) 110VDC DC 0,2...16 bar NBR -10...+90 °C CE 21WA4K0B130-BDA08110CS-C003-31-CV20-6 20120024
2/2-way solenoid valve Series 21X

2/2-way solenoid valve Series 21X

Pilot-operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm

2/2-Wege-Magnetventil Serie 21X 2/2-Wege-Magnetventil Serie 21X
To Series: 2/2-way solenoid valve Series 21X
Grundversion
Female thread DN Length Pressure DC Pressure AC/DC Seal Medium temperature Voltage Voltage type Design Approval Type Sequence
G 3/4" 19 mm 104 mm 0,1...16 bar 0,1...16 bar FKM -10...+120 °C - - - - 21X3KV190 20120024
Varianten
Female thread DN Length Pressure DC Pressure AC/DC Seal Medium temperature Voltage Voltage type Design Approval Type Sequence
G 3/4" 19 mm 104 mm 0,1...16 bar 0,1...16 bar FKM -10...+120 °C 12VDC DC Standard CE 21X3KV190-BDA08012CS-C003-32-6 20120025
