Pressure switches, measuring instruments and flow monitors

List prices PL
VI-BC-3"-MS-250
Valve insert Flow limiter; BC-3"-MS-250, Flow rate 250l/min
VNMV111
Vacuum pressure switch 1/4" IG, pressure gauge connection 1/2"AG housing aluminium, pressure sensor and metal bellows 1.4571 setting range -1 to +0.1 bar max. permissible pressure 6 bar reset differential adjustable 90-650 mbar
WP-SMP30NCASRD
Set of wear parts for SMP30NCASRD; Consists of Filter element; Silencer; Sealrings; Piston; Piston seals; Compression spring; O-rings
ZAT-3000
Measuring sensor;Outlet signal 4...20mA; Ambient temperature 0...+50°C; Operating voltage 12VDC...24VDC (±10%); Accuracy 1%; Protection class IP65
PS01-14E-50/250-03
Pressure switch Series PS01; Change-over contact; Diaphragm EPDM; Setting scale; 250VAC/6A; 24VDC/2A; Male thread G1/4"; Protection class See Protection cap (Max. IP65); Range of adjustment 50...250mbar; Overpressure protection 4bar; Connection Stainless steel
FM24-34-W-24-01
Flow monitors; Viscosity compensated ...600mm²/s; Body Stainless steel 1.4571; For any mounting position; Medium temperature Max. 120°C; Oil scale; Application: Monitoring of lubrication; Switch unit NO contact; Connection G3/4"; Switching range 8...24L/min; Maximum pressure 300bar; U max. 250V; Max. current 3A; Length 130mm; ATEX 2154X (Ex II 2G Ex mb IIC T6 Gb + Ex II 2D Ex tb IIIC T80 °C Db)
FM24-10-W-24-01
Flow monitors; Viscosity compensated ...600mm²/s; Body Stainless steel 1.4571; For any mounting position; Medium temperature Max. 120°C; Oil scale; Application: Monitoring of lubrication; Switch unit NO contact; Connection G1"; Switching range 8...24L/min; Maximum pressure 300bar; U max. 250V; Max. current 3A; Length 130mm; ATEX 2154X (Ex II 2G Ex mb IIC T6 Gb + Ex II 2D Ex tb IIIC T80 °C Db)
FM24-10-W-8-01
Flow monitors; Viscosity compensated ...600mm²/s; Body Stainless steel 1.4571; For any mounting position; Medium temperature Max. 120°C; Oil scale; Application: Monitoring of lubrication; Switch unit NO contact; Connection G1"; Switching range 2...8L/min; Maximum pressure 300bar; U max. 250V; Max. current 3A; Length 130mm; ATEX 2154X (Ex II 2G Ex mb IIC T6 Gb + Ex II 2D Ex tb IIIC T80 °C Db)
FM11-20-M-6000-01
Flow meter; Measuring tube PVC-U; Float PVDF; Female thread Malleable cast iron zinc plated; Temperature range 0...+60°C; Pressure Max. 10bar; Mounting position Vertical pipe; Application: Water; Connection 2"; Range 600...6000l/h; Incl. NC contact ZNC

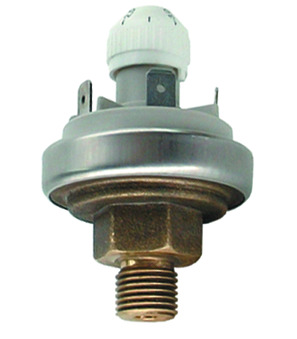

901.92U-111M4
Pressure switch Series 901.9; Change-over contact; Diaphragm NBR; Setting scale; 250VAC/6A; 24VDC/2A; Male thread 1/4"; Application: Air, Water, Neutral oils; Protection class See Protection cap (Max. IP65); Range of adjustment 4...9bar; Overpressure protection 25bar; Hysteresis range 0,5-2bar
901.10-112D2
Pressure switch; Diaphragm EPDM; 250VAC/6A; Male thread G1/8"; Connection material PA; Pressure setting 265+-25/215+-25 mm WS; Overpressure protection 0,5bar
PS46-112E-0,1/2,5-01
Pressure switch; Change-over contact; Body Aluminum; Wetted parts Inconel/EPDM; 250VAC/15A, 24VDC/2A; Male thread 11/2"; Incl. Pressure transformer With 1.4435 Membrane Protection class IP66; Range of adjustment 0,1...2,5bar; Overpressure protection 40bar
FM01-14-N-0,13-01
Flow monitors; Body Nickel plated brass; Float Brass; For any mounting position; Medium temperature Max. 100°C; Water scale; Change-over contact; Connection G1/4"; Switching range 0,04...0,13L/min; Maximum pressure 300bar; U max. AC/DC150V; I max. AC0,7/DC1A; Length 65mm
PS06-FLN-10/160-01-C003-42-6
PS06-FLN-10/160-01
Pressure switch; Change-over contact; Piston seal NBR; 250VAC/6A, 28VDC/4A; Flange connection DIN ISO 16873; Application: Air, Water, Hydraulic oil; Protection class IP65; Connector size 32mm; Range of adjustment 10...160bar; Overpressure protection 350bar; Without connector
C003-42-6
Connector; Suitable for Pressure switch Series PDS, HDS; Connector size 32mm; Voltage 0-250VAC/DC
PS47-14-N-2/3
Pressure switch Series 903.1; Change-over contact; Diaphragm NBR; Setting scale; 250VAC/6A; 24VDC/2A; Male thread 1/4"; Application: Air, Water, Neutral oils; Protection class See Protection cap (Max. IP65); ; Pressure setting 3,0+-0,3/2,0+-0,3 mbar; Overpressure protection 0,3bar; Hysteresis range 0,3mbar
PS47-14-N-1/2
Pressure switch Series 903.1; Change-over contact; Diaphragm NBR; Setting scale; 250VAC/6A; 24VDC/2A; Male thread 1/4"; Application: Air, Water, Neutral oils; Protection class See Protection cap (Max. IP65); ; Pressure setting 2,0+-0,2/1,0+-0,2 mbar; Overpressure protection 0,3bar; Hysteresis range 0,2mbar
FM28-14-Z-15
Flow meter; Body Stainless steel 1.4404; Float Glass; Seal FKM; Mounting position Vertical; Medium temperature -20...+80°C; Scale for air at 1bar/20°C; Connection 1/4"; Measuring range 1…15Nl/h; Maximum pressure 15bar; Incl. valve

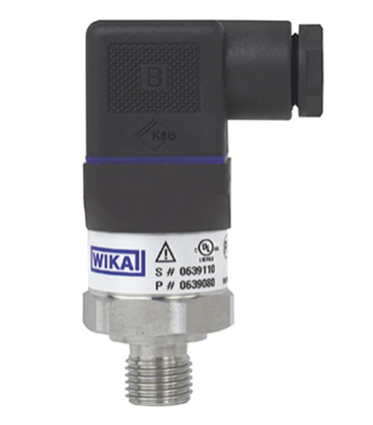

PT02-14N-V-010
Pressure transmitter; Body, Wetted parts Stainless steel 1.4404; Outlet signal 0...10V Proportional to applied pressure; Emergency current 14...30 VDC; Male thread 1/4"; Measuring range -1...0bar
FM05S-32-PV-1500-01
Flow meter Series FM04/FM05; Measuring tube PSU; Float PVDF; Solvent cement socket PVC; Temperature range -10...+60°C; Pressure Max. 10bar; Mounting position Vertical pipe; Application: Water; Nominal diameter DN32; Range 150...1500l/h
PT02-14N-001-420-01
Pressure transmitter Series PT02; Body, Wetted parts Stainless steel 1.4404; Pressure sensor Stainless steel AISI 316L; Seal NBR; Outlet signal 4...20 mA Proportional to applied pressure; Male thread G1/4"; Accuracy 1% of full pressure range; Measuring range 0...1bar; Temperature range -30 ... +100°C
