Body Brass; Spool Plastic PPS; Seal NBR; Medium temperature -20…+100°C
Axial type check valve Series 100000 -
Body Brass; Spool Plastic PPS; Seal FKM; Medium temperature -10…+150°C
Axial type check valve Series 100001 -
Material 1.4301; Threaded connection part Polyamide
Strainer Series 110100 -
Male thread; Body Brass; Seal FKM; Medium temperature -10…+180°C
Axial type check valve Series 227 -
Female/male thread; Body Nickel plated brass; Seal NBR; Pressure range 0,2...10bar; Medium temperature -10…+70°C
Axial type check valve Series 228 -
Seal FKM; Medium temperature -20…+150°C
Axial type check valve Series 304,CH014-V -
Material 1.4301
Strainer Series ST304 -
Body, Disc 1.4404; Spring 1.4310; Seal FKM; Pressure range 0,2...10bar; Medium temperature -10…+150°C
Axial type check valve Series VX23 -
Body, Inner parts 1.4401; Seal PTFE; Pressure range 0,1...16bar; Medium temperature -30…+130°C
Axial type check valve Series 316 -
Spring loaded; Body Bronze; Inner parts Brass/Stainless steel; Seal FKM; Pressure range 0,1…25bar; Medium temperature -10…+120°C
Angle seat check valve Series 1072 -
Spring loaded; Body, Inner parts Brass; Seal FKM; Pressure range 0,04…25bar; Medium temperature 0…+100°C

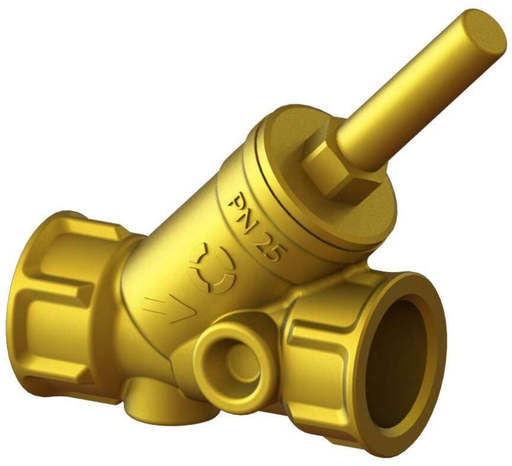

Angle seat check valve Series CH117 -
Spring loaded; Body 1.4408; Inner parts 1.4571/1.4310; Seal PTFE; Medium temperature -20…+200°C
Angle seat check valve Series 4000 -
Wafer type; Body 1.4408; Disc 1.4404; Metal sealing; Medium temperature -55…+250°C

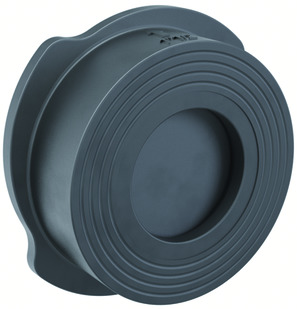

Check valve Series CH009 -
Wafer type; Reset by its own weight; Body Zinc plated steel; Seal NBR; Medium temperature -10…+120°C
Swing check valve Series CS-2466/CS-2424 -
Wafer type; Reset by its own weight; Body, Disc 1.4401; Seal FKM; Medium temperature -50…+260°C

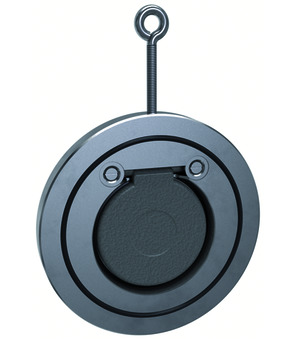

Swing check valve Series CS-6666 -
Wafer type; Reset by spring; Body Zinc plated steel; Seal NBR; Medium temperature -10…+120°C
Swing check valve Series CM-2466/CM-2424 -
Wafer type; Reset by spring; Body, Disc 1.4401; Seal FKM; Medium temperature -50…+260°C

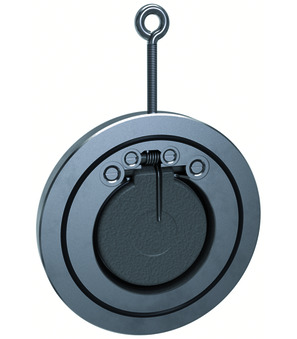

Swing check valve Series CM-6666
Check valves
Axial type check valve Series 100000
Body Brass; Spool Plastic PPS; Seal NBR; Medium temperature -20…+100°C
| Female thread | Length | Pressure range | Type | Sequence |
|---|---|---|---|---|
| RP 3/8" | 47 mm | 0,03...40 bar | 100000-3/8" | 33300000 |
| RP 1/2" | 59 mm | 0,03...40 bar | 100000-1/2" | 33300001 |
| RP 3/4" | 65 mm | 0,03...40 bar | 100000-3/4" | 33300002 |
| RP 1" | 75 mm | 0,03...25 bar | 100000-1" | 33300003 |
| RP 1 1/4" | 83 mm | 0,03...25 bar | 100000-11/4" | 33300004 |
| RP 1 1/2" | 89 mm | 0,03...16 bar | 100000-11/2" | 33300005 |
| RP 2" | 101,5 mm | 0,03...16 bar | 100000-2" | 33300006 |
| RP 2 1/2" | 121 mm | 0,03...16 bar | 100000-21/2" | 33300007 |
| RP 3" | 136 mm | 0,03...16 bar | 100000-3" | 33300008 |
| RP 4" | 158 mm | 0,03...16 bar | 100000-4" | 33300009 |
Axial type check valve Series 100001
Body Brass; Spool Plastic PPS; Seal FKM; Medium temperature -10…+150°C
| Female thread | Length | Pressure range | Medium temperature | Type | Sequence |
|---|---|---|---|---|---|
| RP 3/8" | 47 mm | 0,03...40 bar | -10...+130 °C | 100001-3/8" | 33310000 |
| RP 1/2" | 59 mm | 0,03...40 bar | -10...+130 °C | 100001-1/2" | 33310001 |
| RP 3/4" | 65 mm | 0,03...40 bar | -10...+130 °C | 100001-3/4" | 33310002 |
| RP 1" | 75 mm | 0,03...25 bar | -10...+130 °C | 100001-1" | 33310003 |
| RP 1 1/4" | 83 mm | 0,03...25 bar | -10...+130 °C | 100001-11/4" | 33310004 |
| RP 1 1/2" | 89 mm | 0,03...16 bar | -10...+130 °C | 100001-11/2" | 33310005 |
| RP 2" | 101,5 mm | 0,03...16 bar | -10...+130 °C | 100001-2" | 33310006 |
| RP 2 1/2" | 121 mm | 0,03...16 bar | -10...+150 °C | 100001-21/2" | 33310007 |
| RP 3" | 136 mm | 0,03...16 bar | -10...+150 °C | 100001-3" | 33310008 |
| Male thread | Type |
|---|---|
| G 3/8" | 110100-3/8" |
